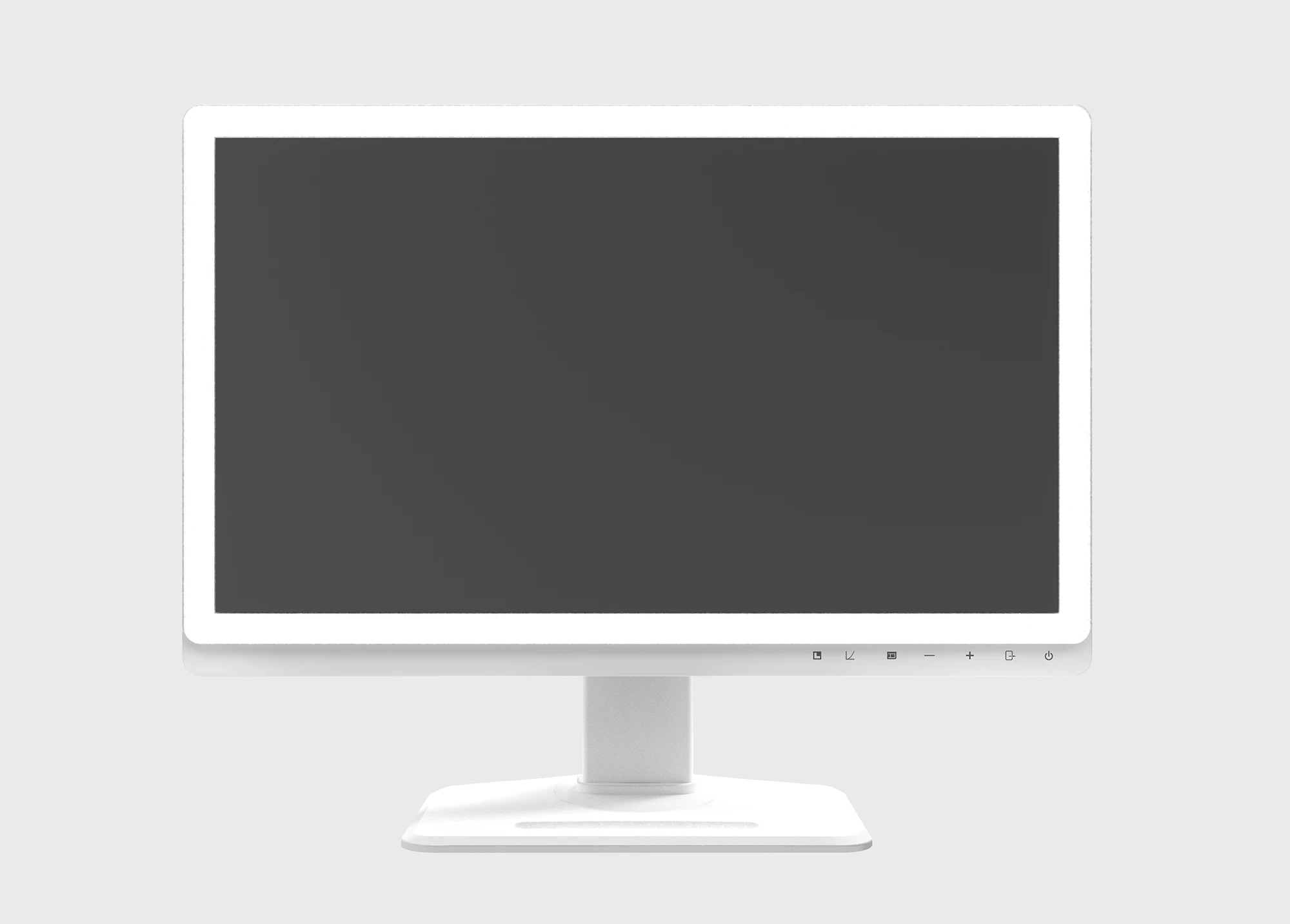

Mini LED display module
-
-
Model
Mini LED display module
-
Main optical parameters
Size
31.5 inches
-
Panel type
IPS
-
Resolution
3840*2160@60Hz
-
Active display area
697.306(H) × 392.234(V)mm
-
Color depth
10bit
-
Maximum brightness of module(TYPE)
600nit(Not turn on LOCAL DIMMING)
-
Peak brightness
1200nit(Turn on LOCAL DIMMING)
-
SDR contrast
1000:1
-
HDR contrast
1000000:1
-
Color gamut
≥104%(NTSC)
-
Response Time(Tr+Td)
≤25ms
-
Viewing angle
R/L: 178(TyP)，U/D: 178(TyP)
-
Brightness uniformity
≧90%
-
Bottom light uniformity
No obvious light leakage in the bottom light, and no obvious color change in the lateral vision angle.
-
MTBF
50KH
-
Other functions
Glass surface treatment
AG
-
Back photosensitive hole
Support (Cooperate with the sensor to achieve the brightness stabilization)
-
Backlight drive mode
Compatible with routine ON/OFF+PWM Backlight adjustment mode and LOCAL DIMMING backlight drive mode.
-
Backlight type
The mini-LED, with 1,152 subdivisions
-
ESD requirement
The whole machine static electricity 8K/15K
-
life cycle
No less than 5 years
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
