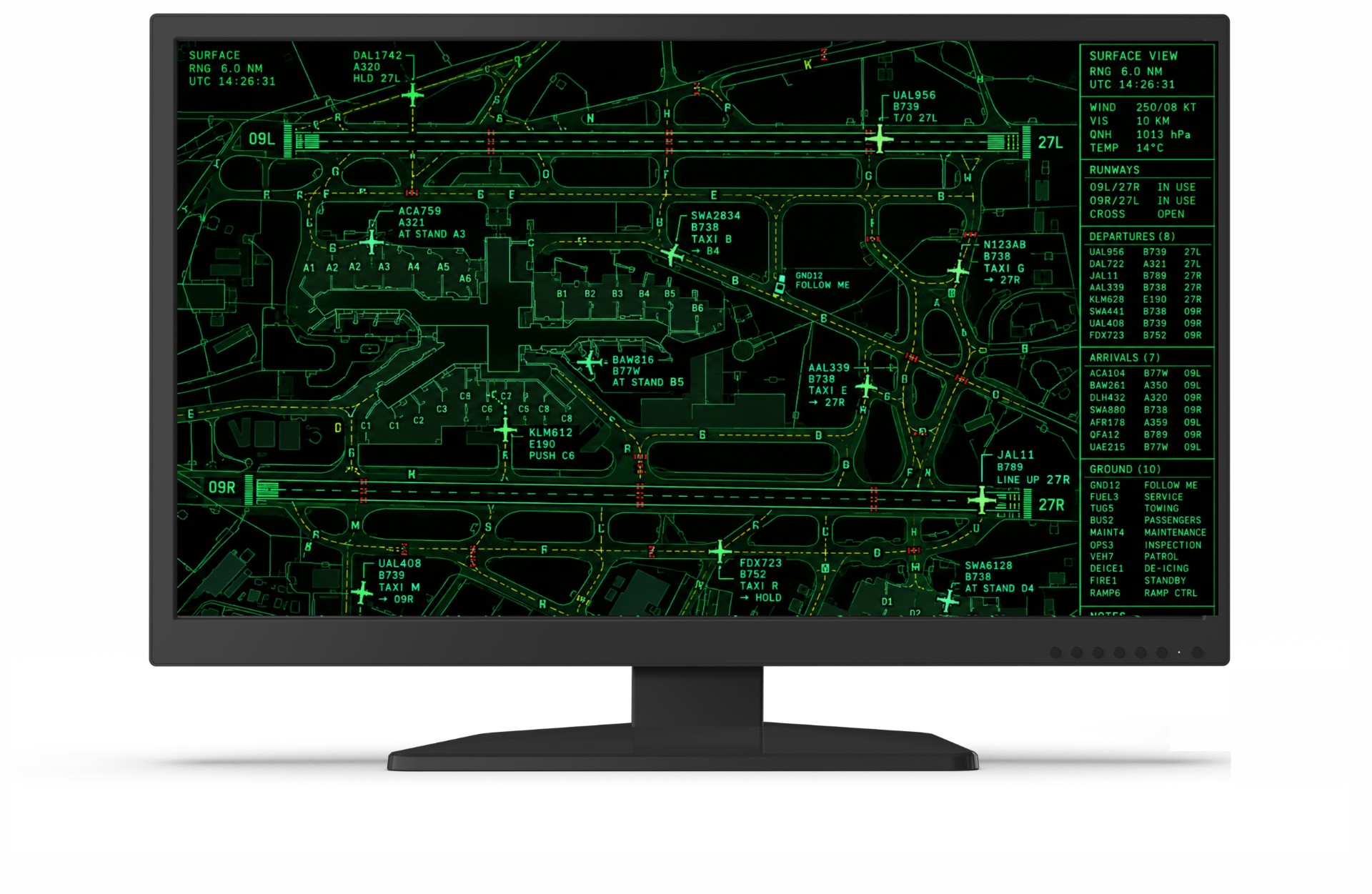

Air Traffic Control Monitor
-
-
Model
Model
24R10
-
Panel Characteristics
Max Resolution
1920×1200@60Hz
-
Pixel Pitch
0.270 × 0.270 mm
-
Size
24 inch
-
Brightness
750cd/m² (typ.) ; 600cd/m² (min.)
-
Contrast Ratio
1000: 1 (typ.) ; 700: 1 (min.)
-
Response Time
Tr+Td=14 ms
-
LUT
12bit
-
Viewing Angle
R/L: 178°, U/D: 178° (Typ., Min. 150°)
-
Surface Treatment
AG
-
Backlight Type
LED
-
Display Colors
1.07G (8bit + FRC)
-
Input Power Supply
Input Interface
HDMI*1/DP*2/RS232/SNMP/USB*3
-
Power Supply
100 ~ 240V, 50 ~ 60Hz AC
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
