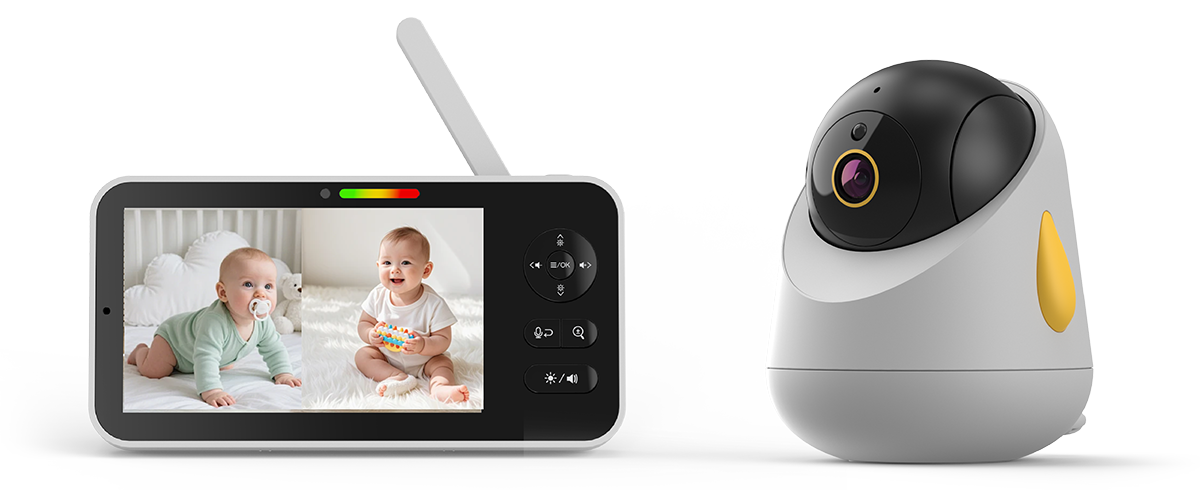

Baby Monitor
-
-
Model
5Q11YK
-
Optical Specifications
Resolution
854*480
-
Aspect ratio
16:9
-
Screen type
ELED
-
Colour gamut(NTSC)
70%
-
Contrast ratio
800:1
-
Brightness
370cd/m²(Typ)
-

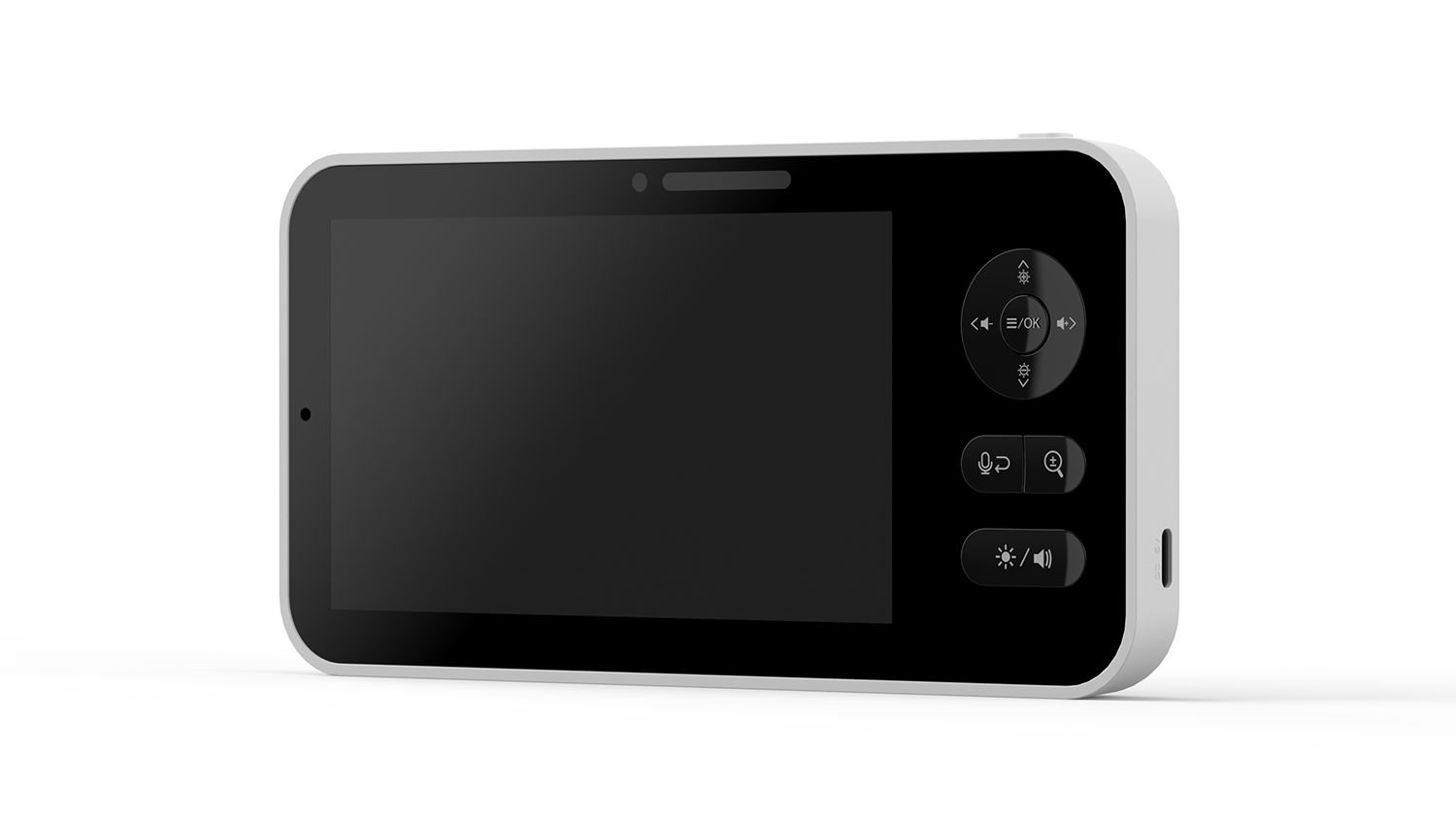

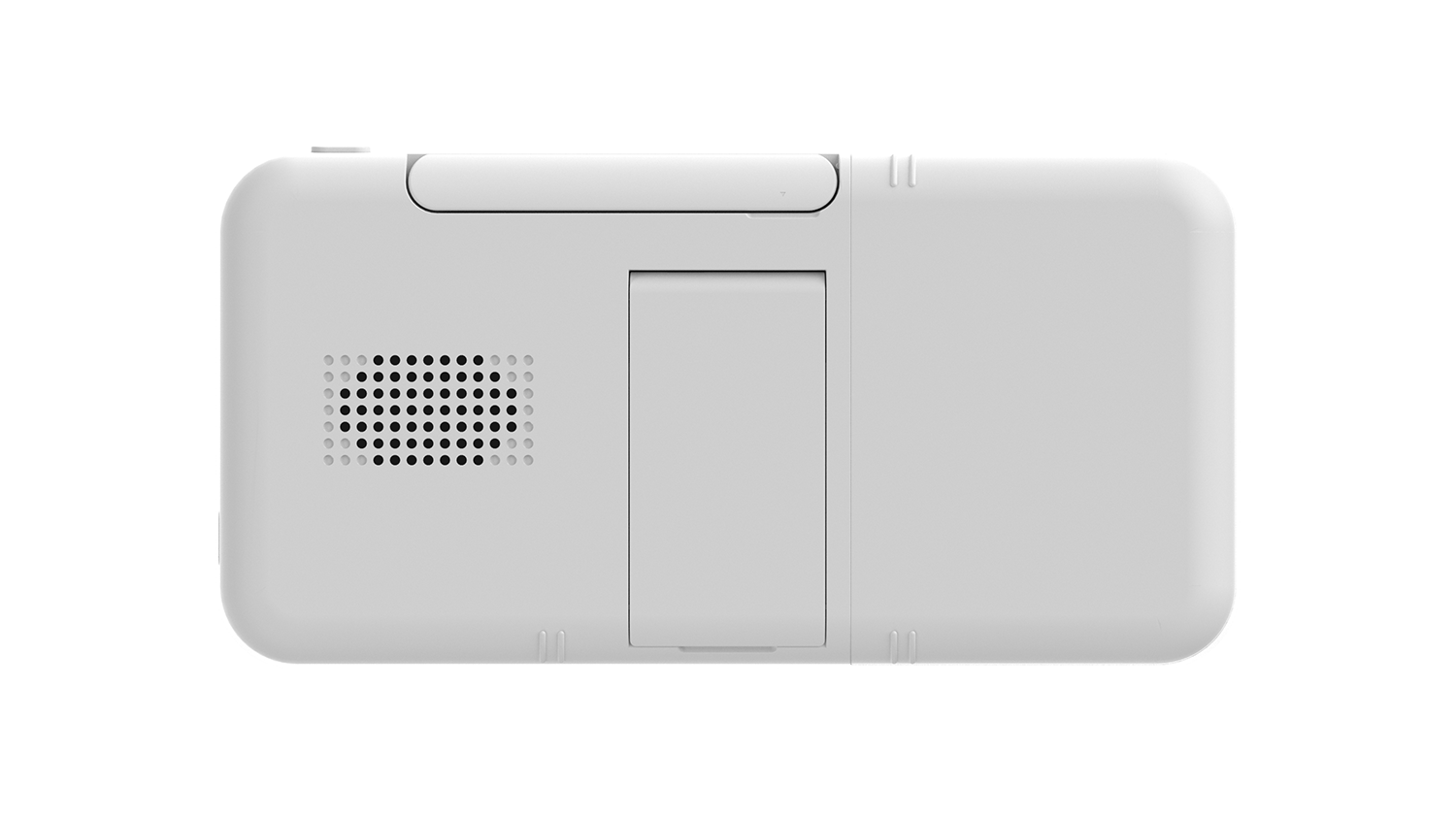

Display / Electrical Specifications
Main Chip
TXW828
-
CPU
Dual‑core XuanTie E804
-
RAM+ROM
16MB+8MB
-
Operating system
RTOS
-
Trumpet
0.8W*1
-
Microphone
Mic*1
-
Push-button
Power Key,Zoom Key,Exit / Two‑Way Audio Key,Up Key,Down Key,Left Key,Right Key,Menu / Enter Key,Brightness Mode Key,Volume Mode Key,Reset Hole
-
External interface
Type-C*1
-
Pitch
4000mAh
-
Power
5V/1.5A
-
Indicator LED
Charging / Power Indicator LED,Sound Intensity Indicator LED
-

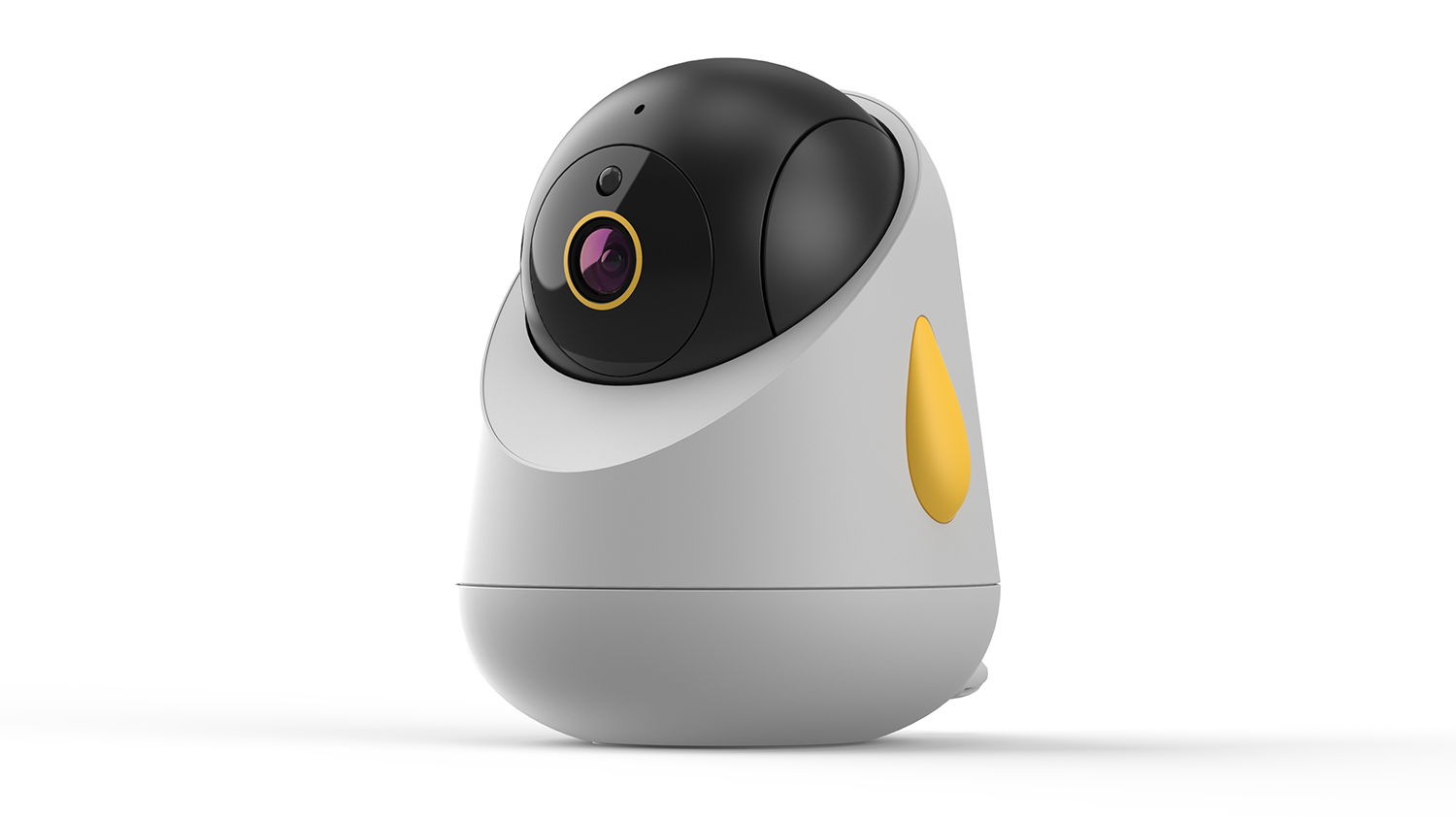

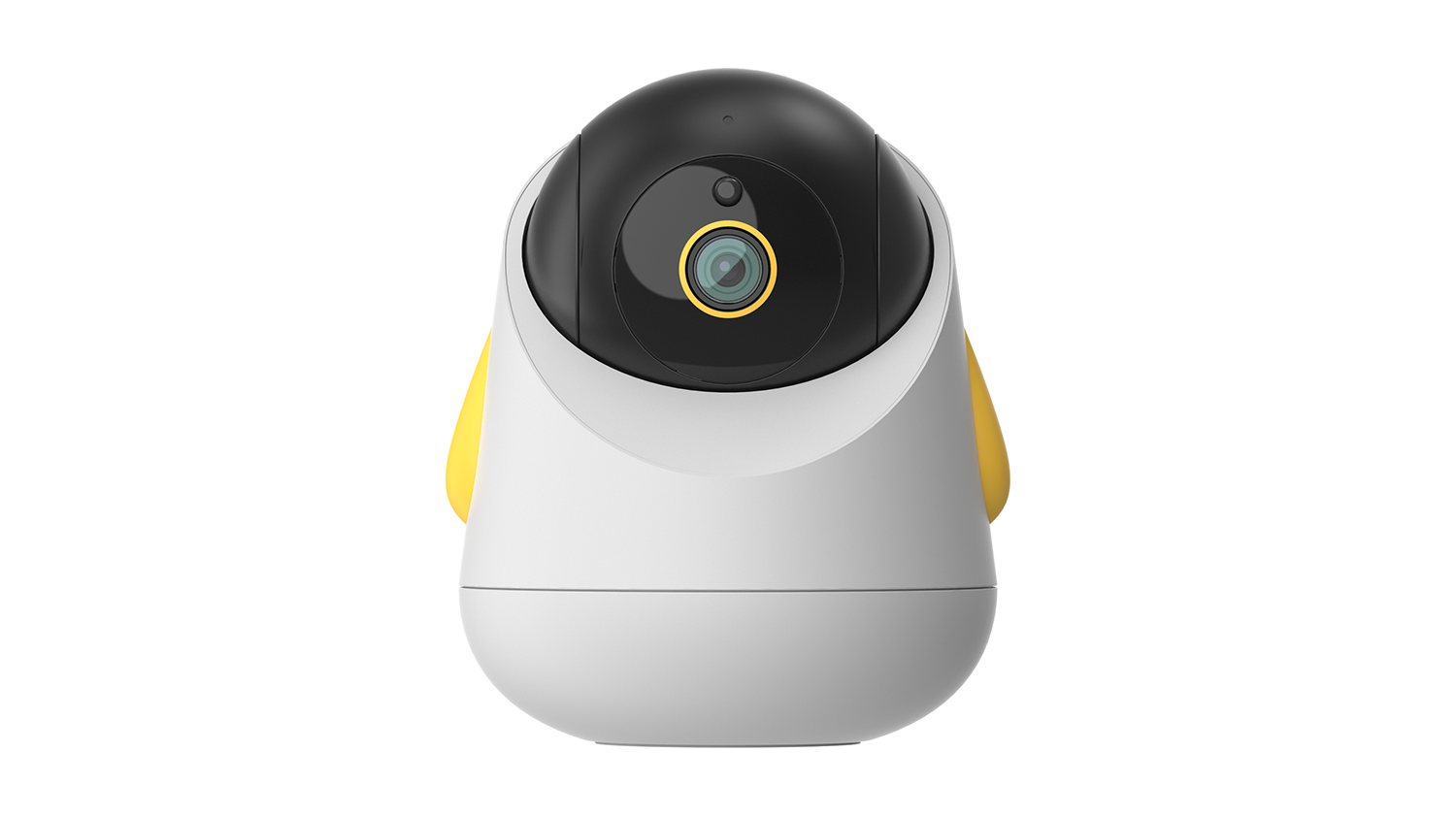

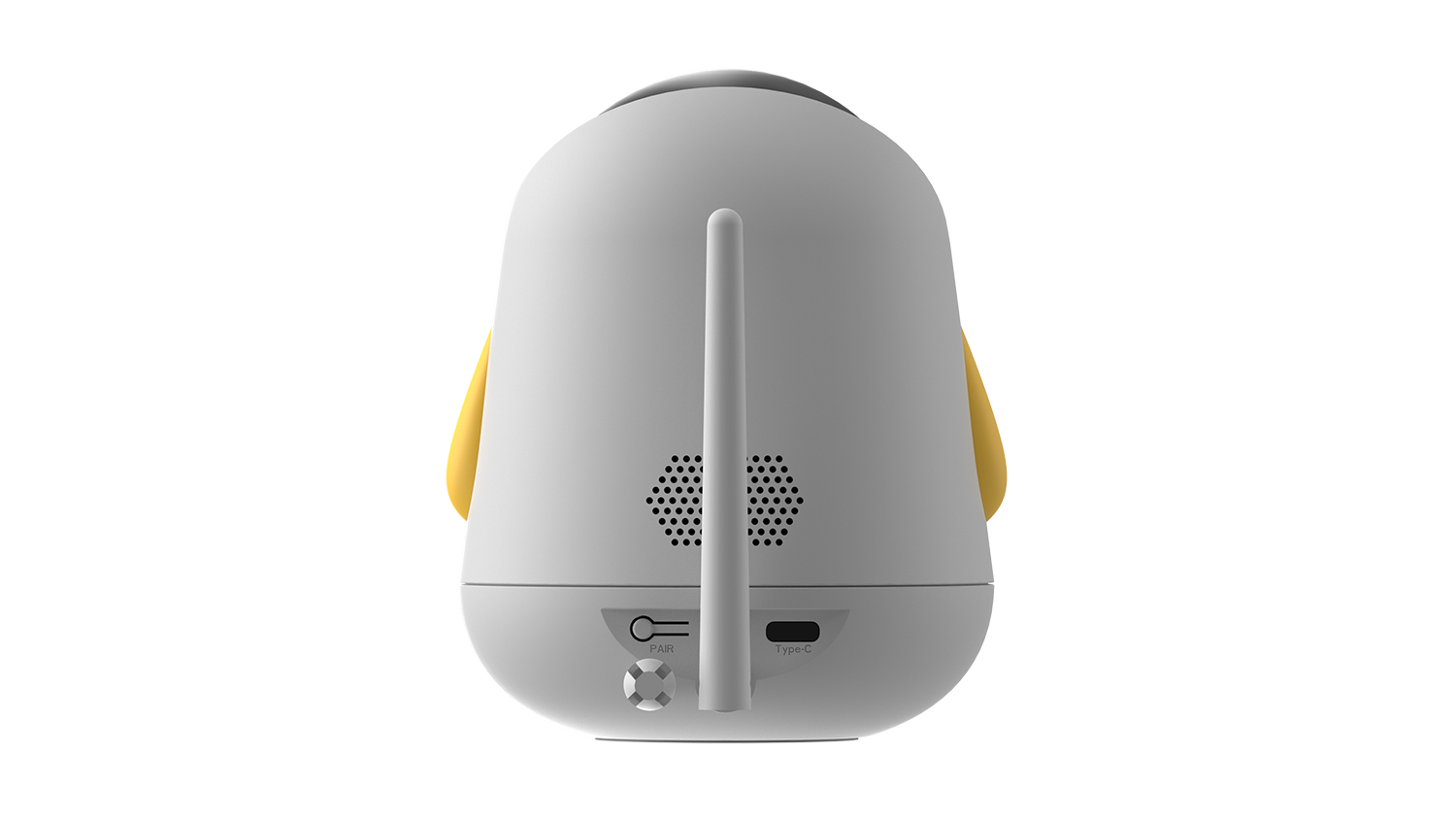

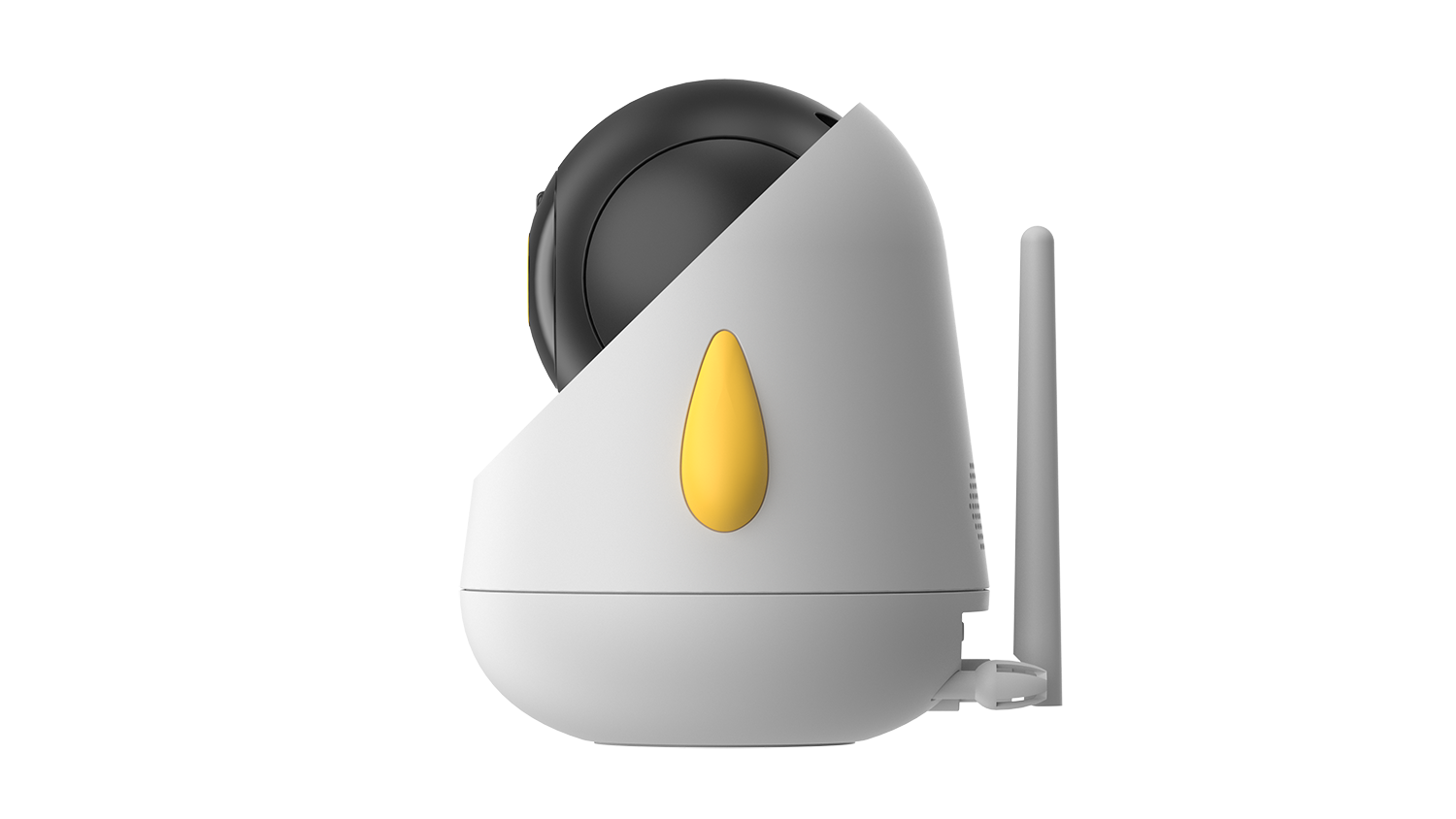

Camera / Electrical Specifications
Main Chip
TXW828
-
CPU
Dual‑core XuanTie E804
-
RAM+ROM
RAM+ROM
-
Operating system
RTOS
-
Pixel
100W
-
Horizontal Rotation
355°
-
Vertical Rotation
115°
-
Trumpet
0.8W*1
-
Microphone
Mic*1
-
External interface
Type-C*1,TF Card Slot
-
Push-button
PAIR Key
-
Indicator LED
Power Indicator LED
-
Power
5V/1.5A
-
Wall‑penetration Capability
Approx. 4 Solid Walls Indoors
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
