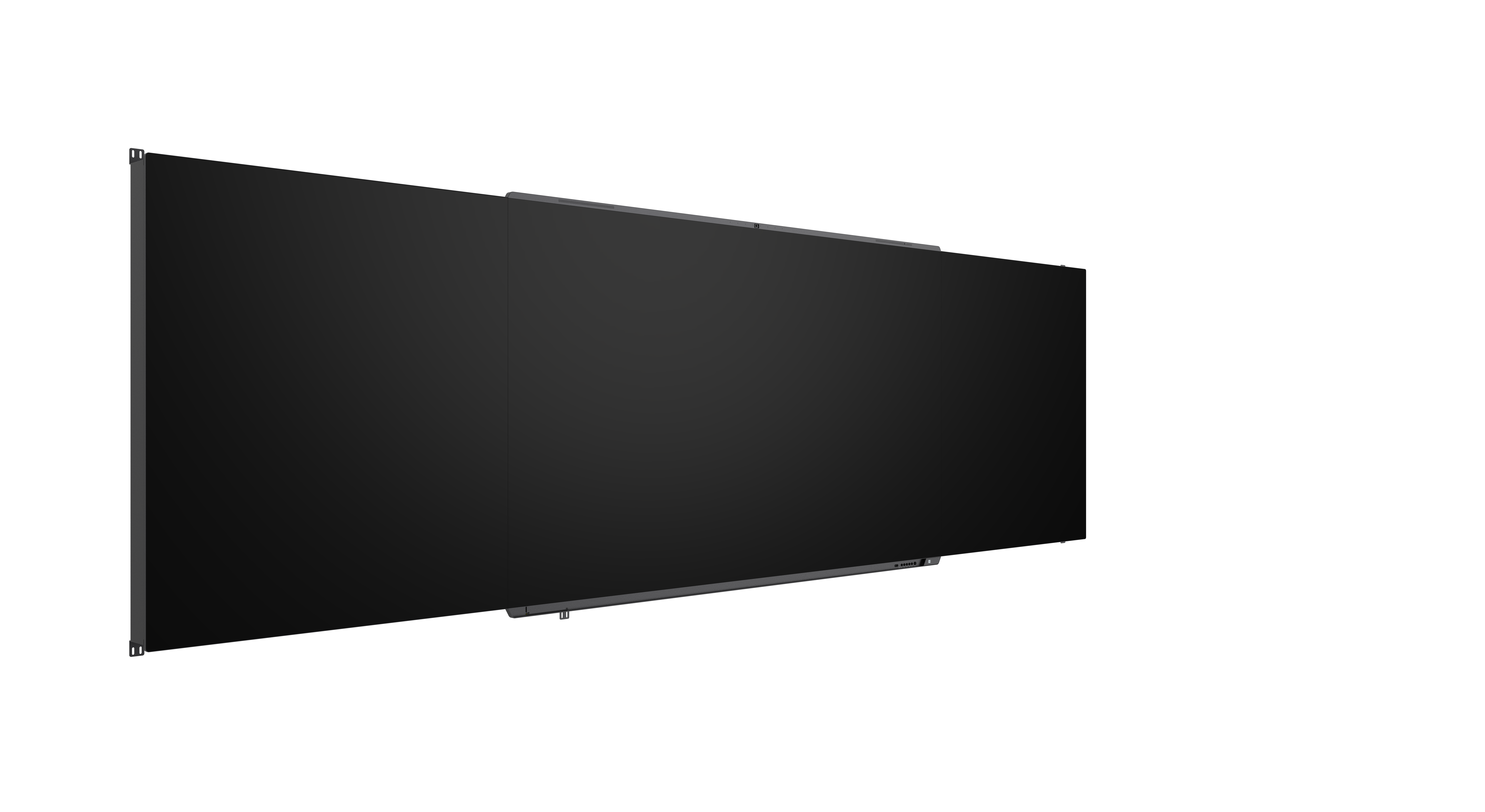

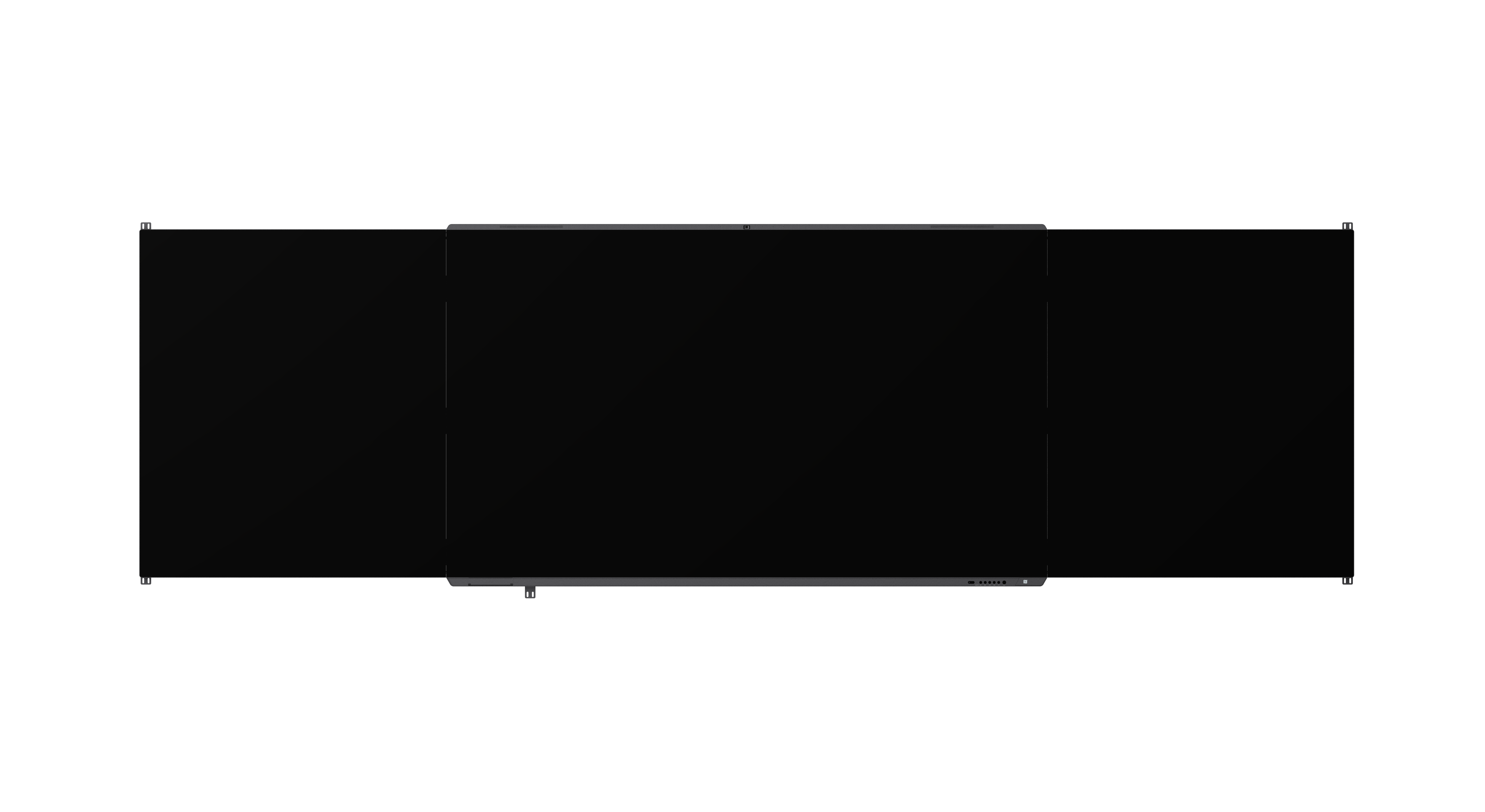

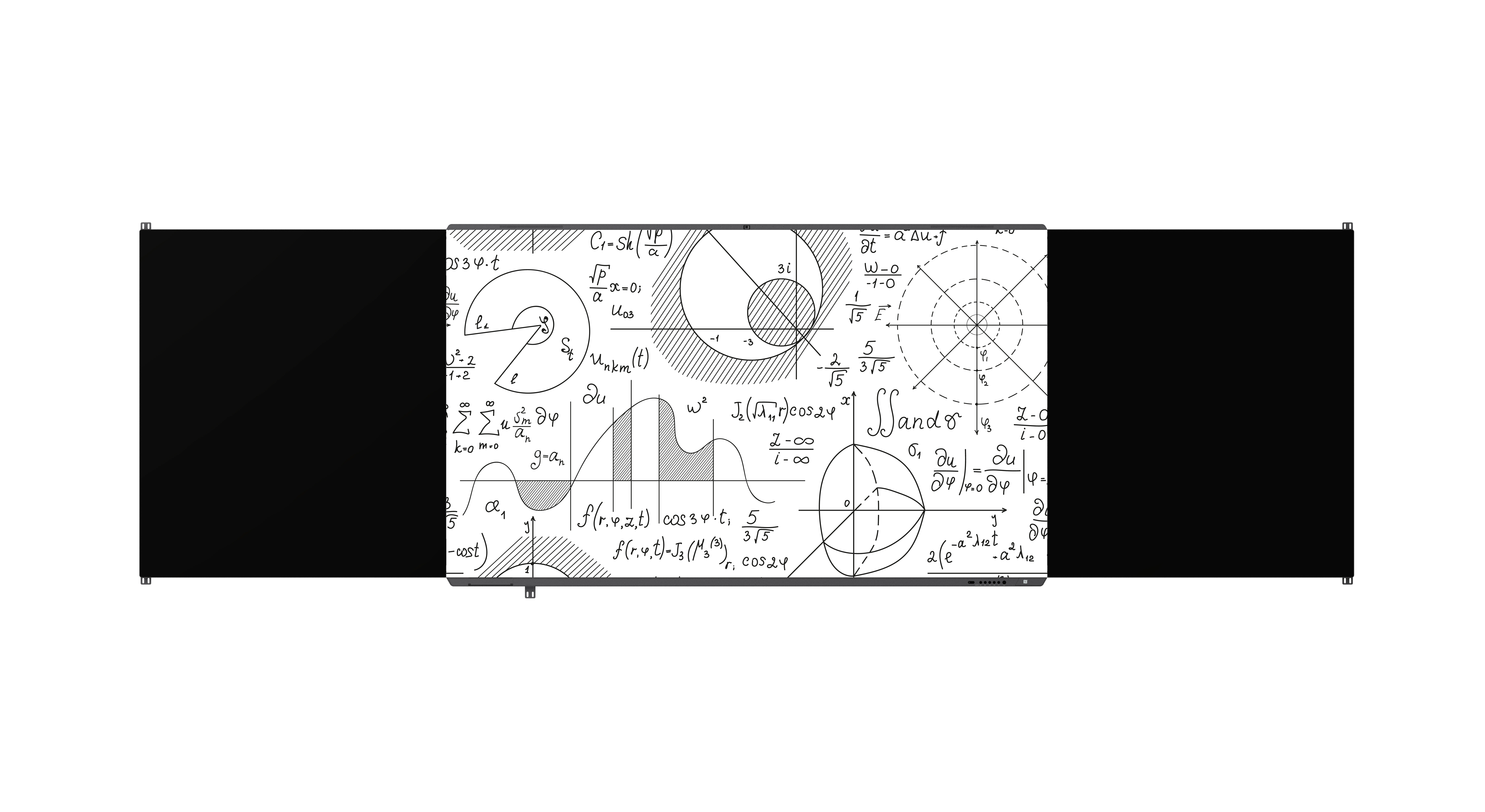

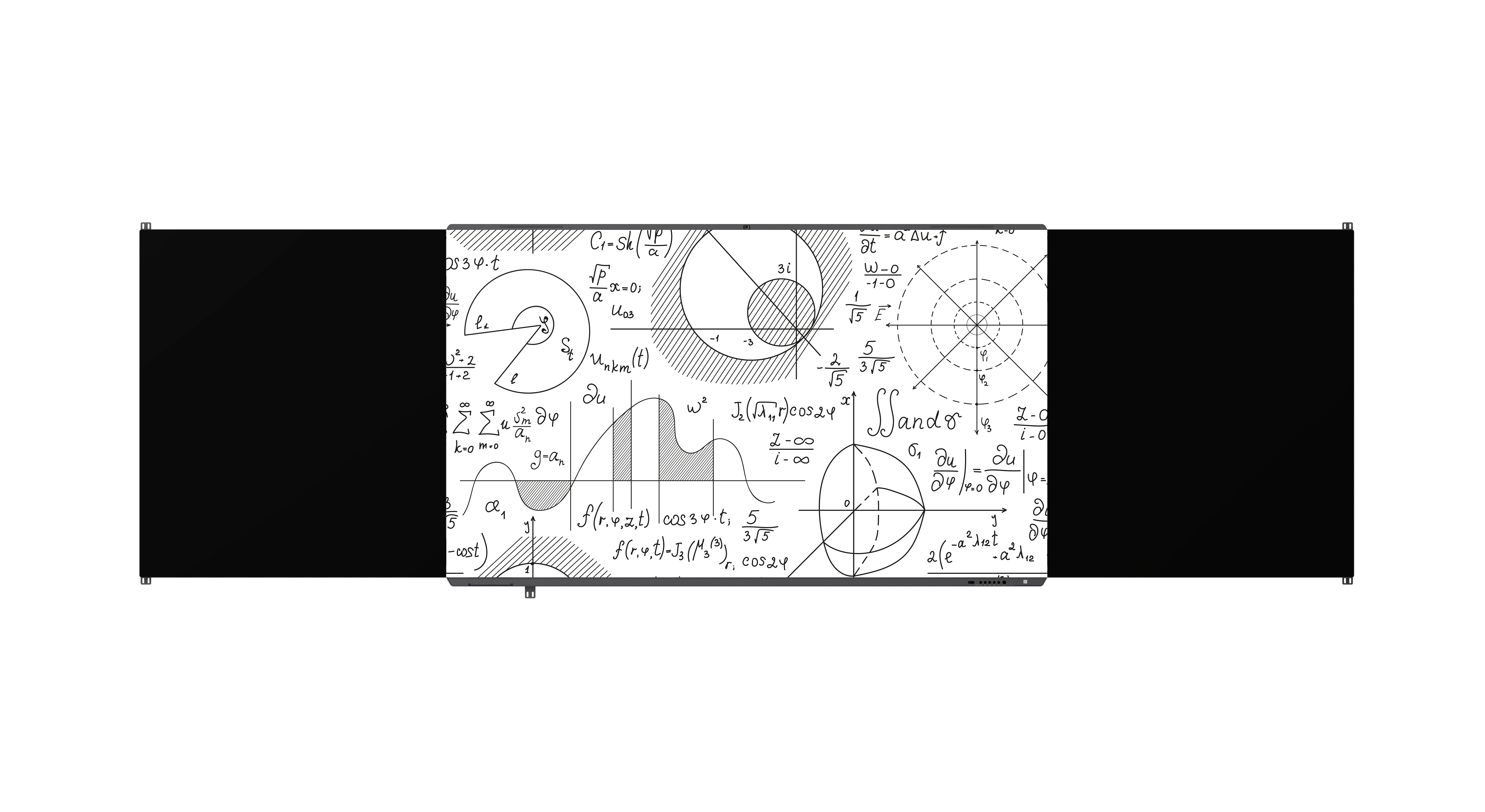

Smart Blackboard
-
-
Model
100S16D
-
Display parameters
Backlight category
DLED
-
Optimum resolution
3840*2160@60Hz
-
Viewing angle
H:178°/V:178°
-
Brightness
500cd/m²(typ.)
-
Contrast ratio
5000:1
-
Response time
8ms
-
Color
1.07B
-
Bonding Technology
Optical Bonding
-
Electrical Parameters
Power Consumption
≤380W
-
Standby Power Consumption
＜0.5W
-
Operating voltage
AC 100V~240V, 50/60Hz
-
Sensing Type
Multi-point PCAP Touch
-
Structure Parameters
Product Dimension(W*D*H)
4600mm*84mm*1372.1mm
-
Packing Dimension(W*D*H)
2140mm*280mm*1340mm(Home screen)
1405mm*280mm*1340mm(Sub screen)
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
