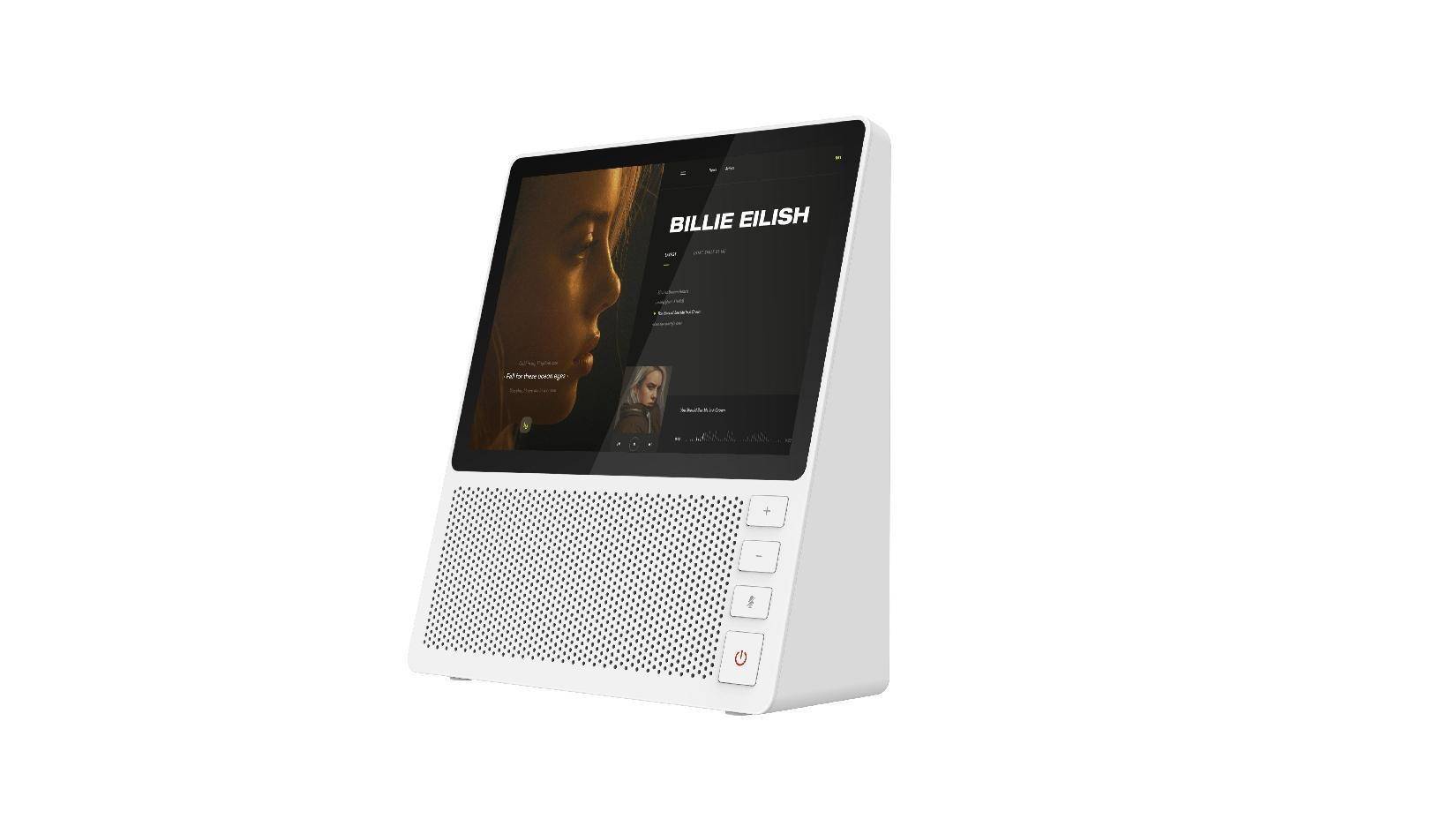

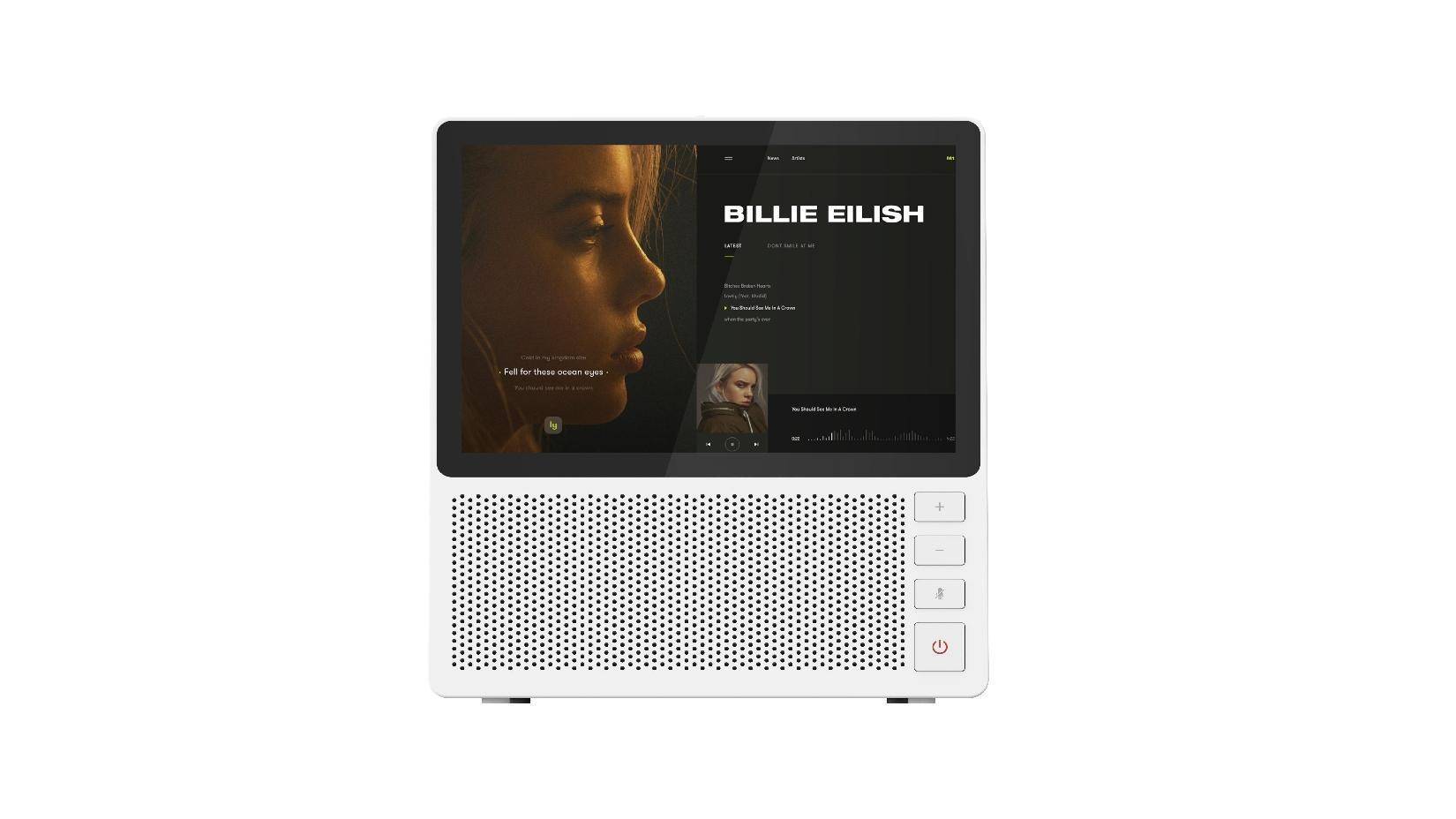

Smart Display Tablet
-
-
Model
8C21YDT
-
Structure specification
Structure composition
Full lamination: OC+TP+tempered glass
-
Lamination process
Full lamination
-
Whole machine size
TBD
-
Surface treatment
AG+AF
-
Optical Specification
A-A
8 inch
-
Resolution
800*1280
-
Aspect ratio
16:10
-
Backlight category
ELED
-
Resfresh rate
60Hz
-
Response time
30ms(typ)/35ms(max)
-
Module Color Gamut
60%(NTSC)
-
Color
16.7M
-
Machine brightness
220nit(Typ)
-
Electrical Specifications
CPU
RK3566
-
RAM+ROM
2GB+8GB
-
Operation system
Android 9
-
Overall power
/
-
Touch Panel
5 points touch control
-
Camera
200W
-
WIFI/Bluetooth
WIFI6/Bluetooth5.4
-
Microphone Array Board
two channels of digital silicon microphones
-
Keypad
On/off button, mute button, volume "±"
-
External port
DC-IN 12V
-
Power source
DC 12V , 2A
-
Audio Output Power
8W
-
Batteries
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
