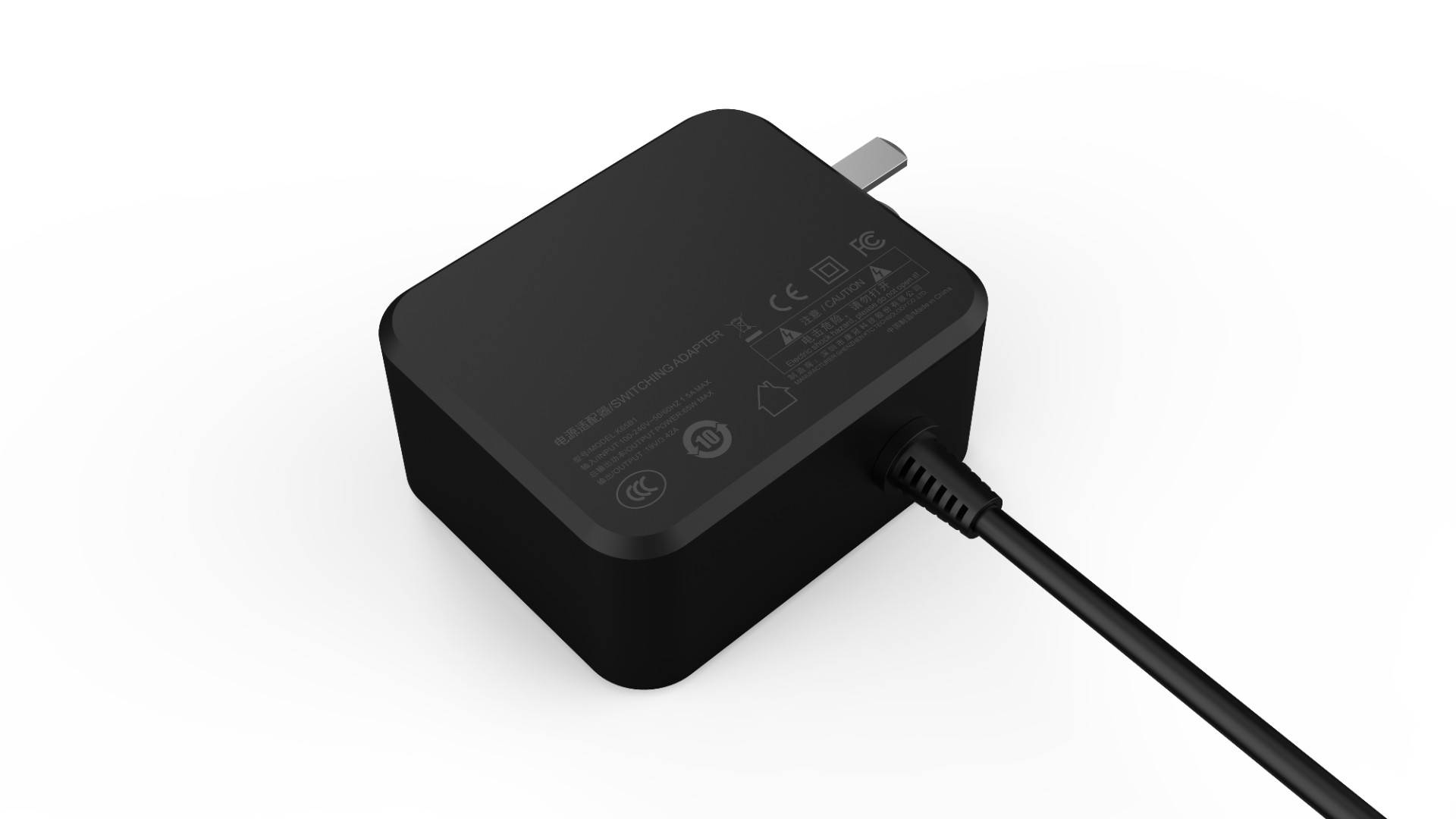

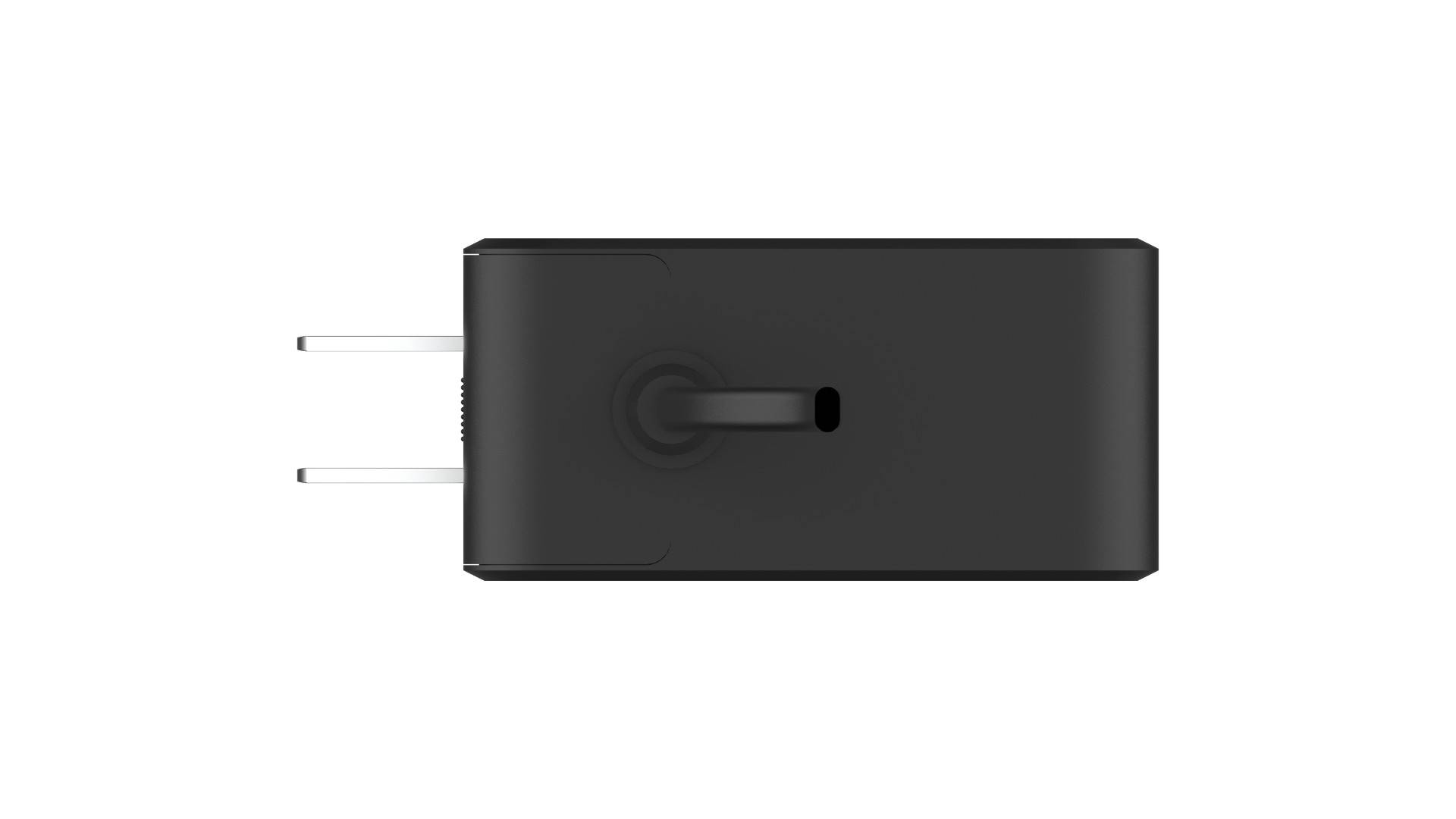

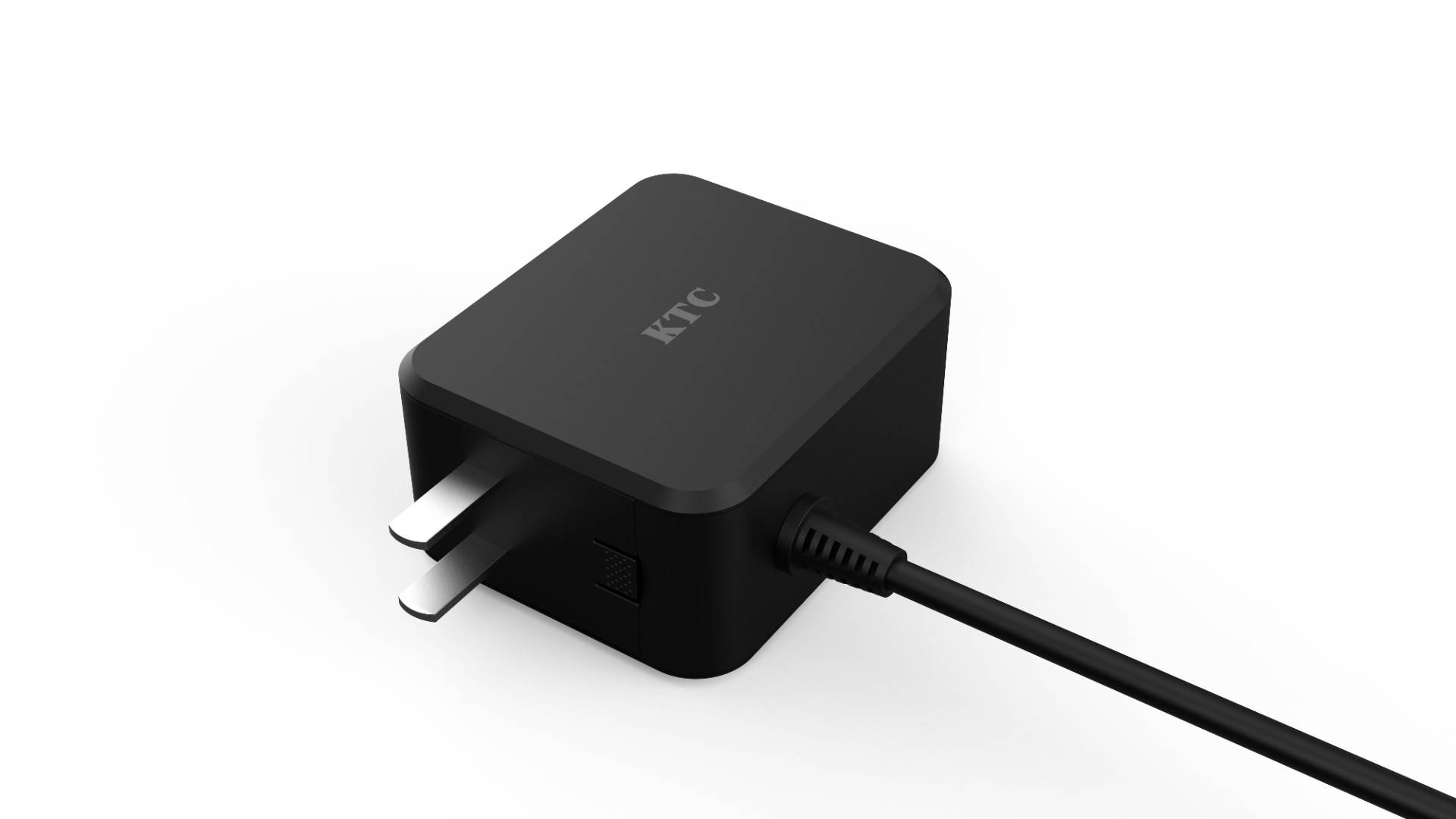

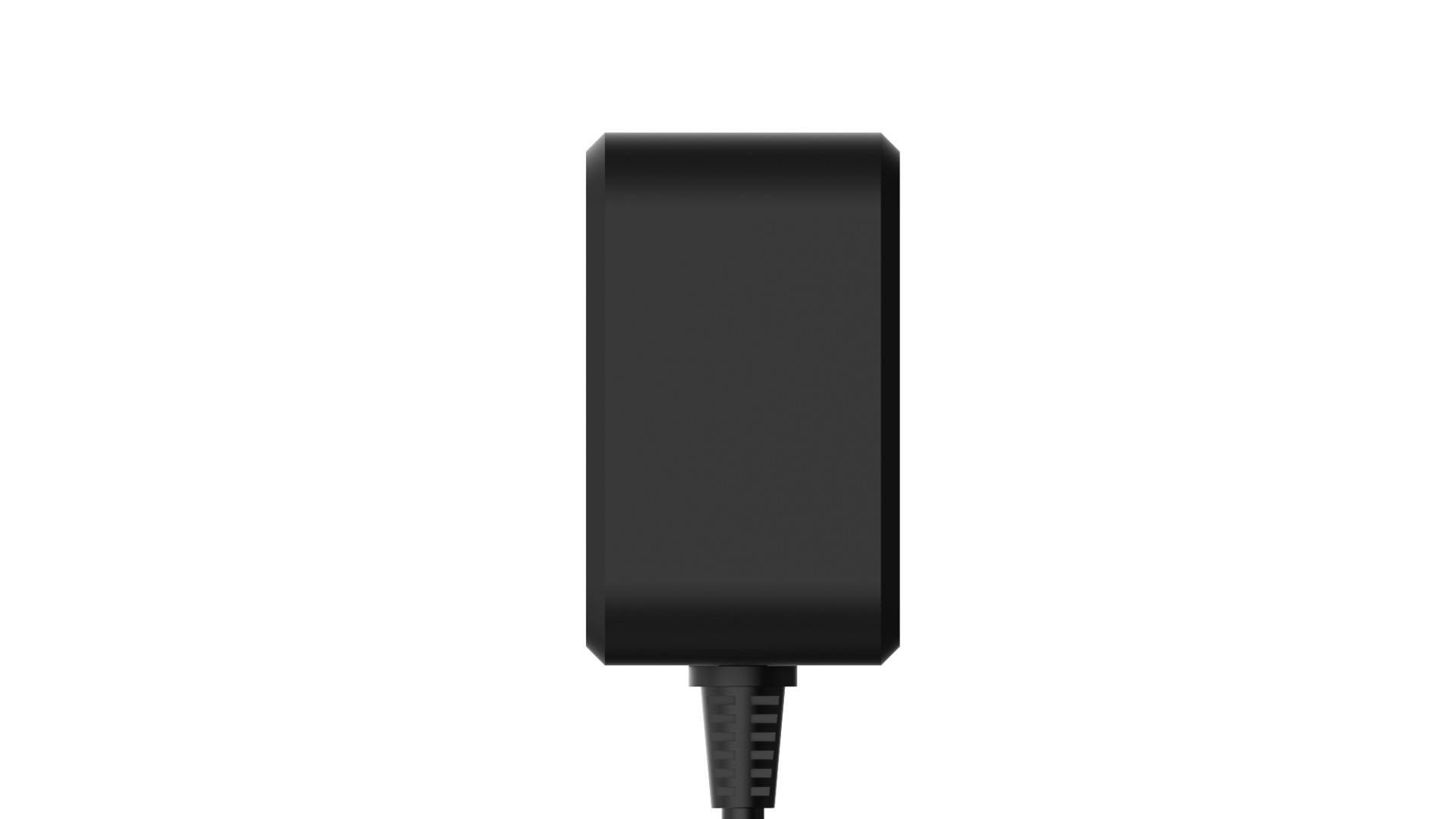

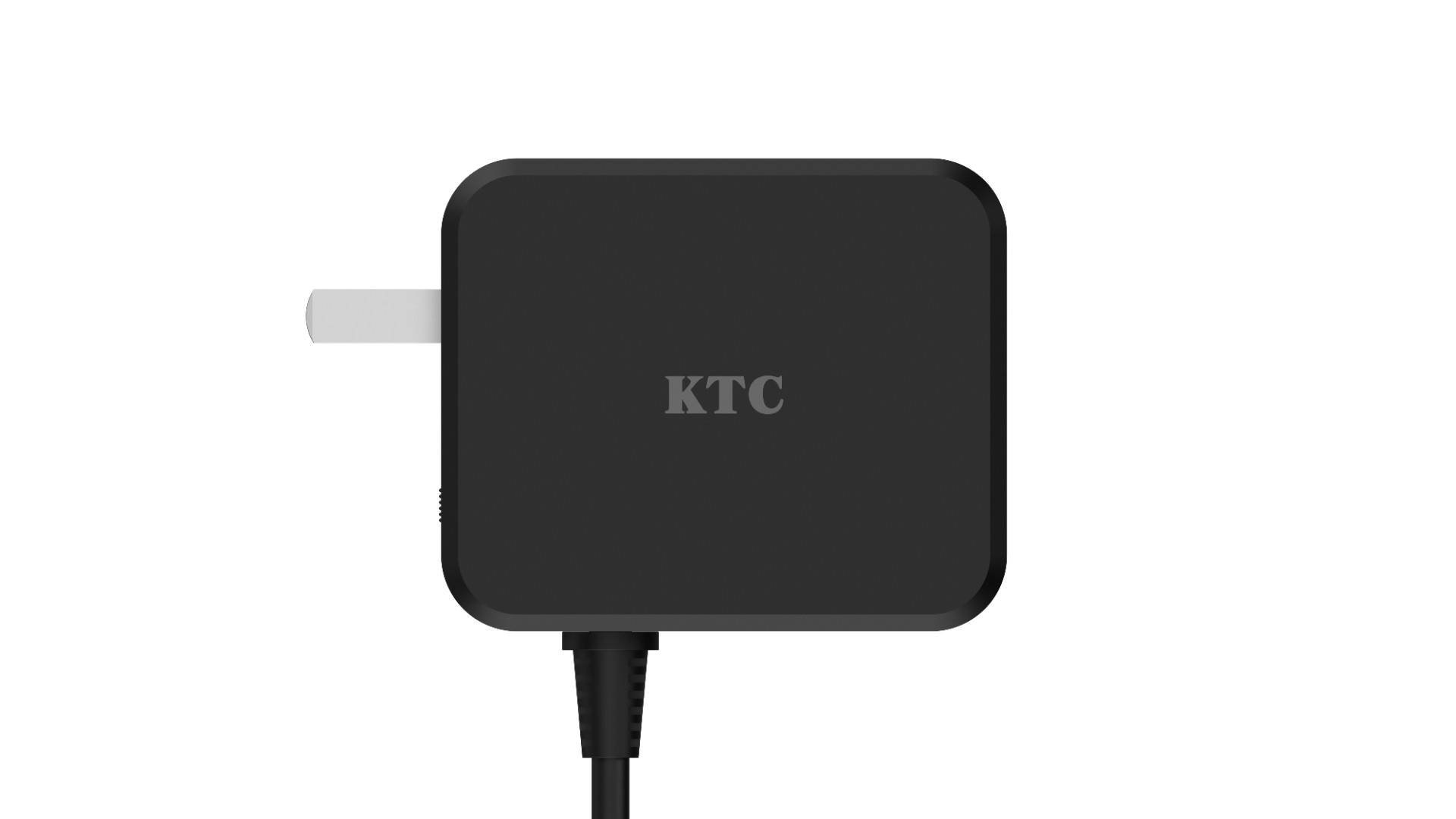

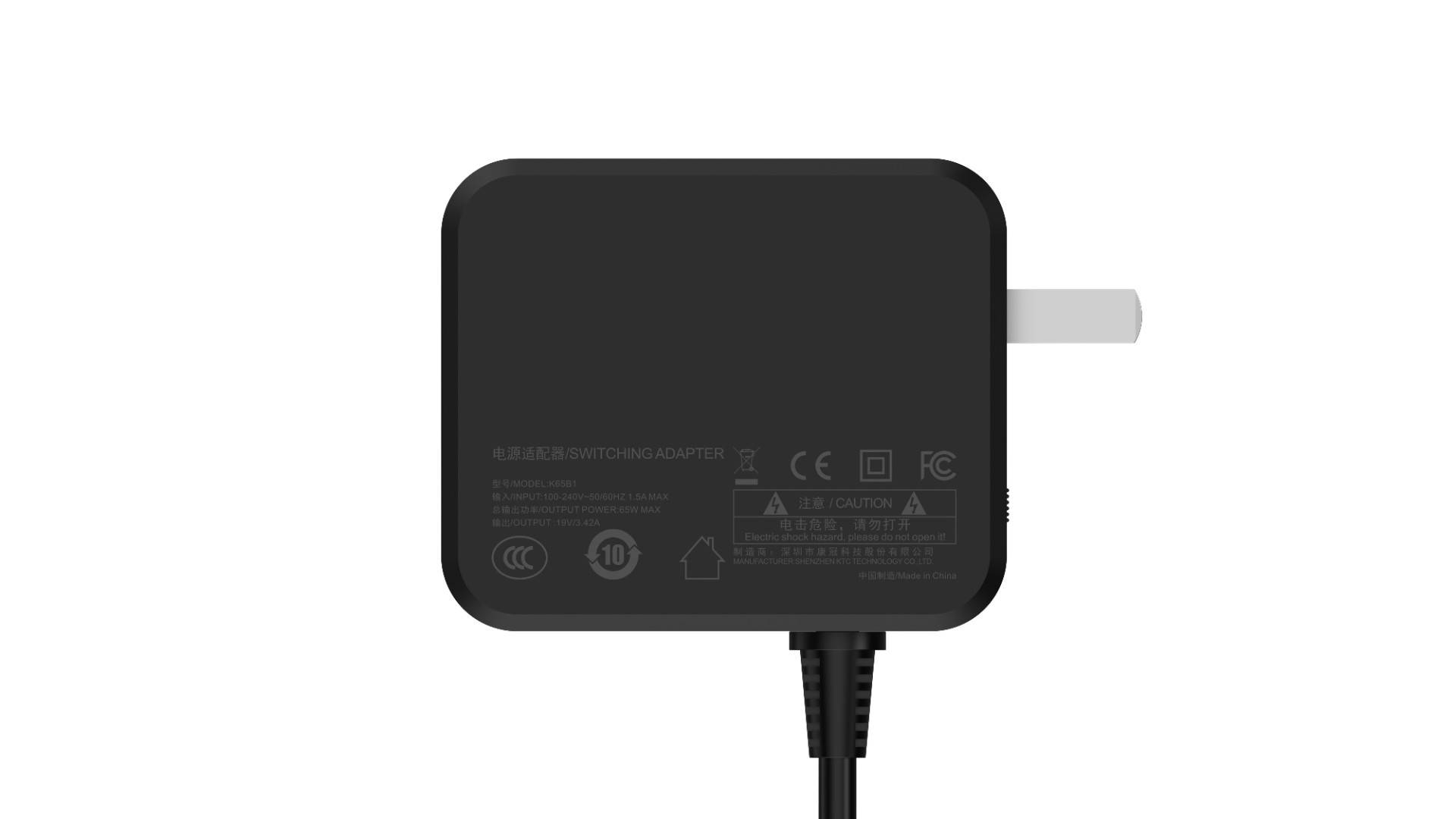

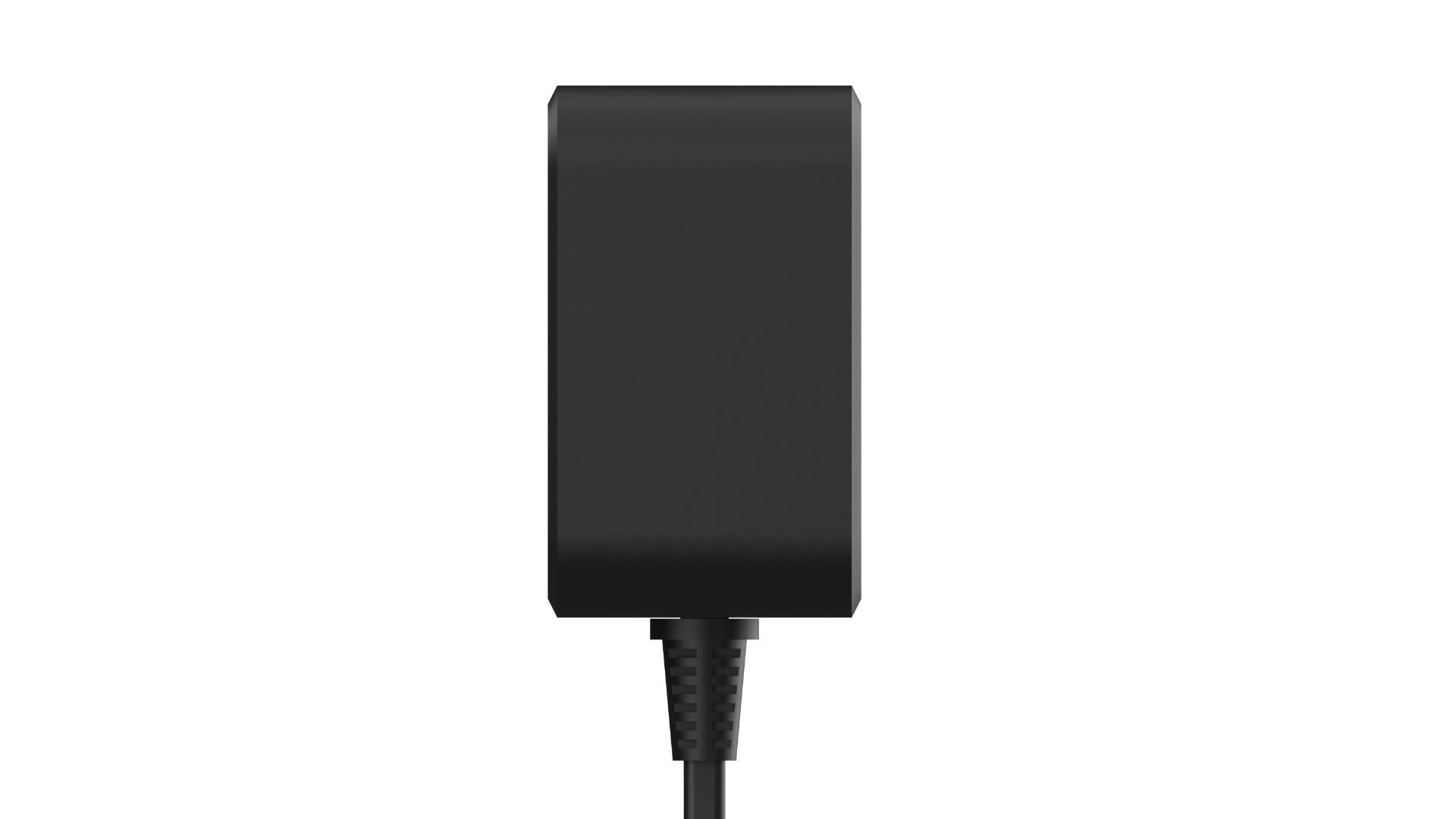

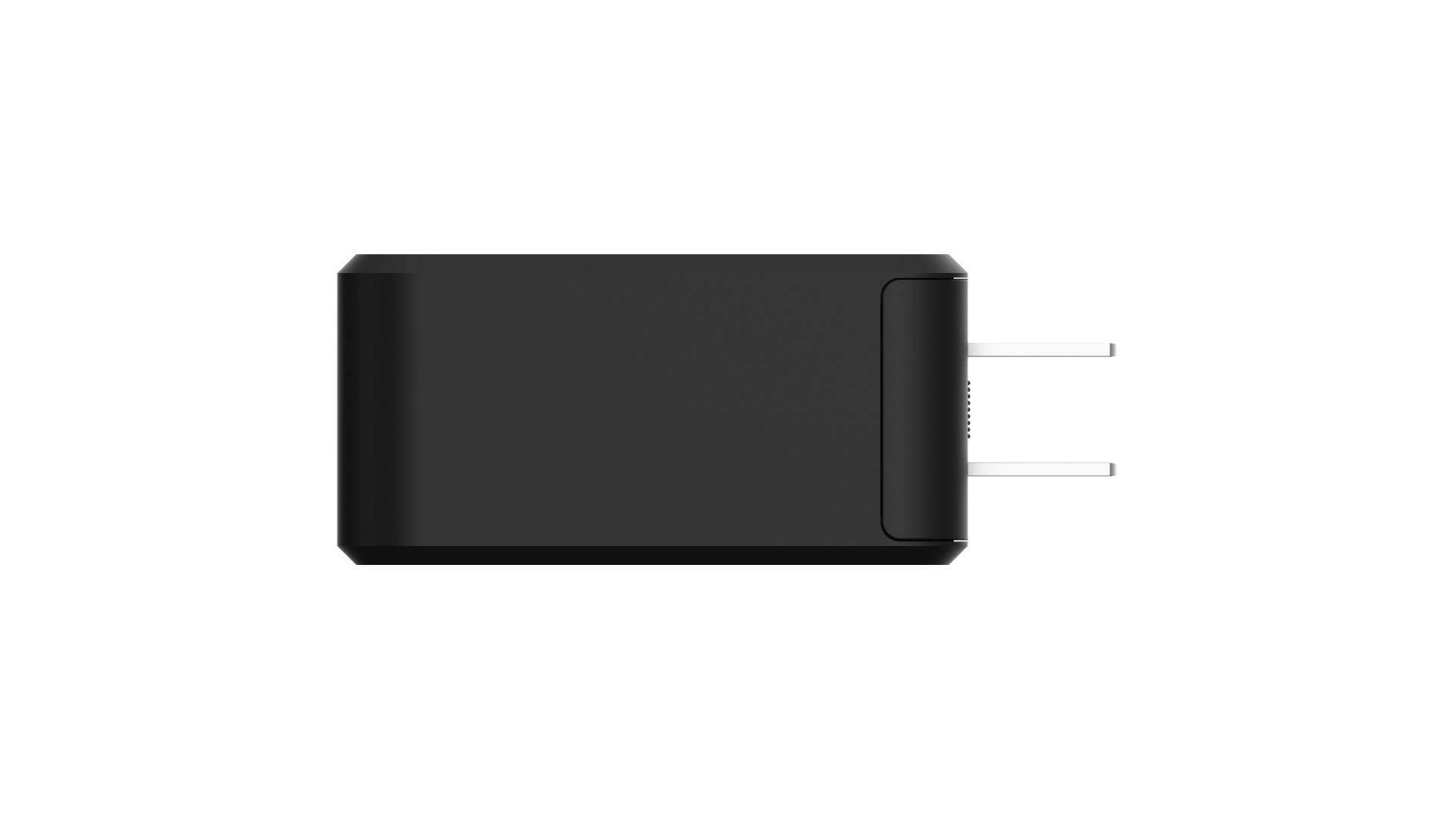

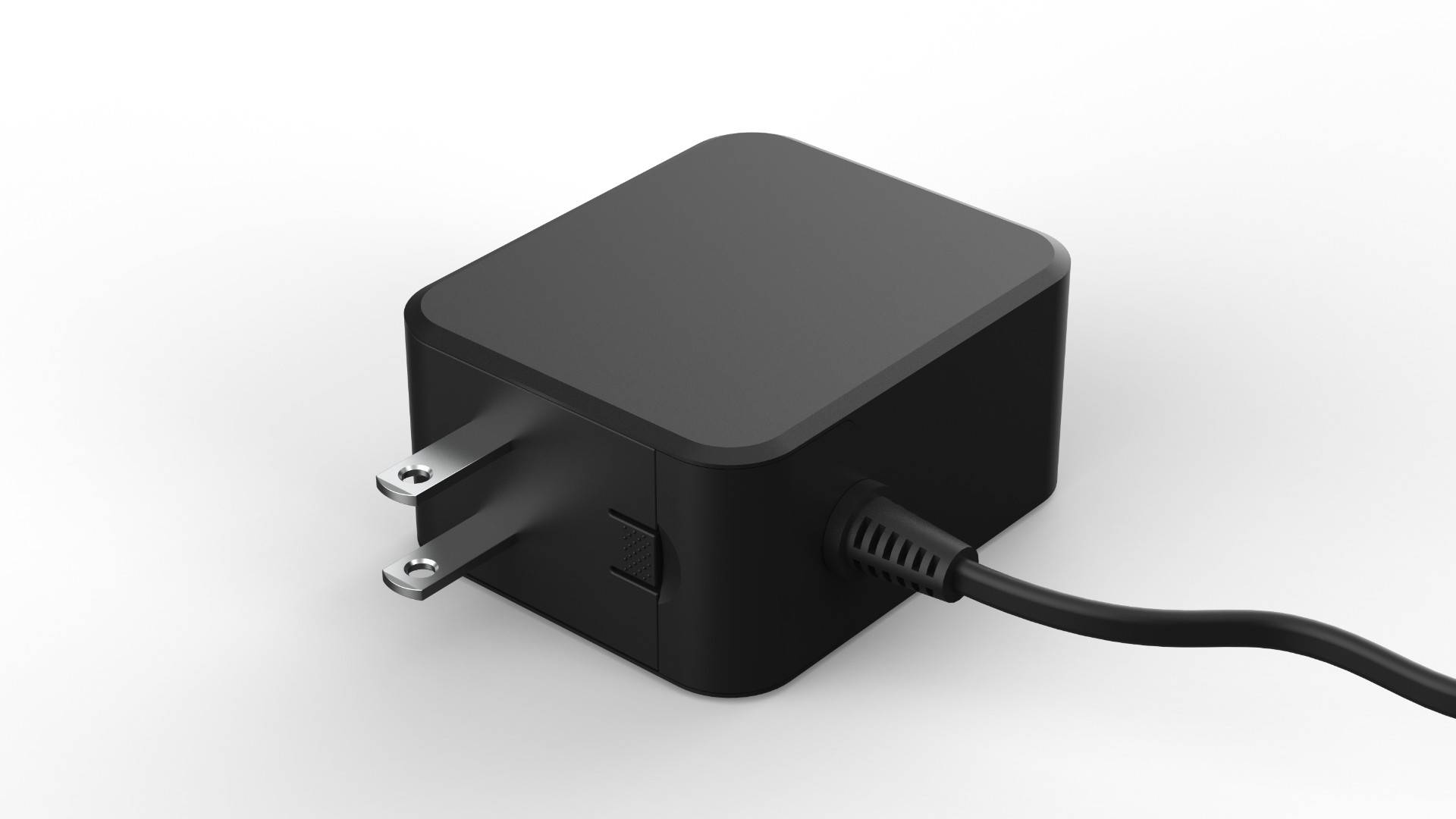

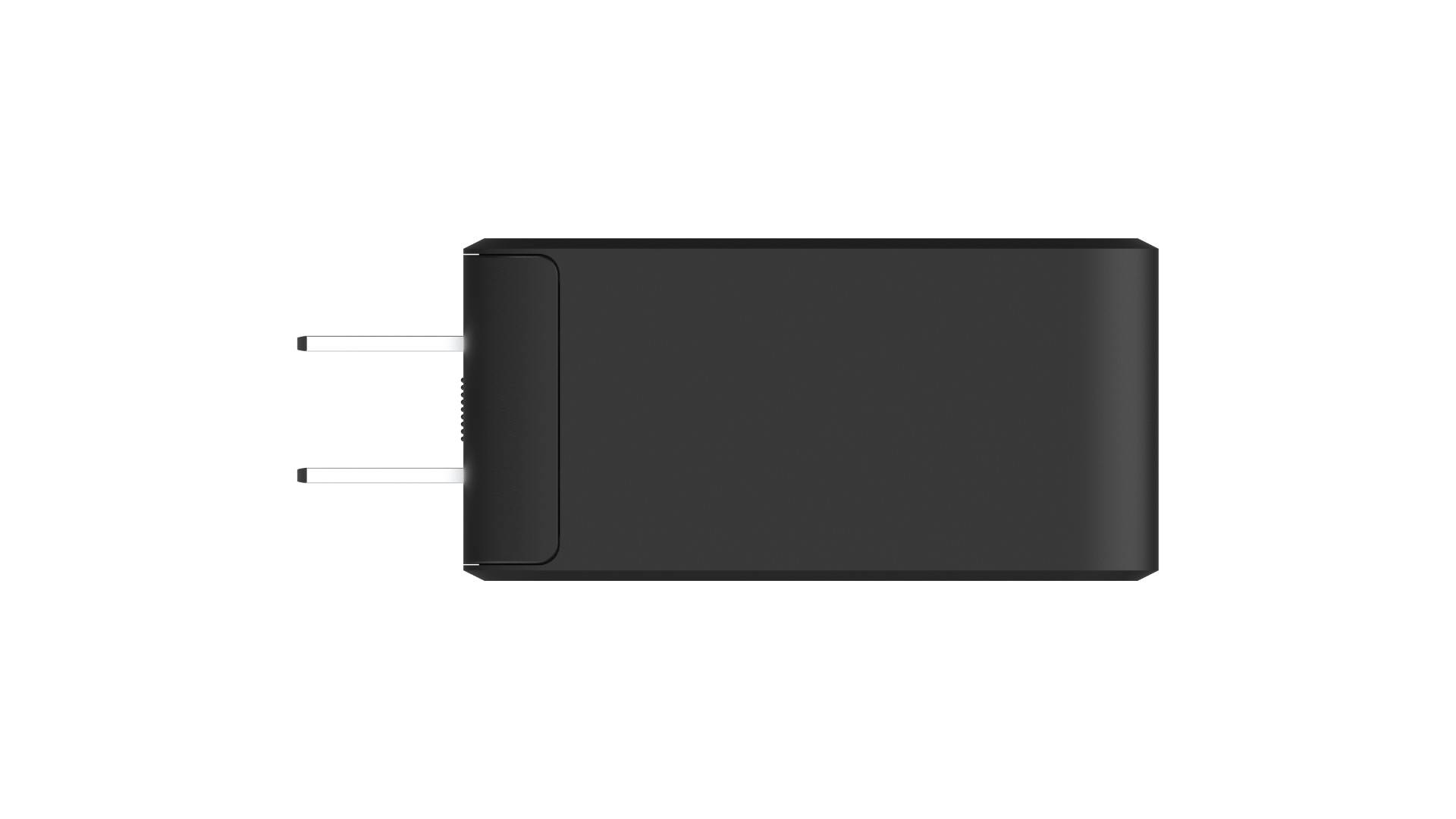

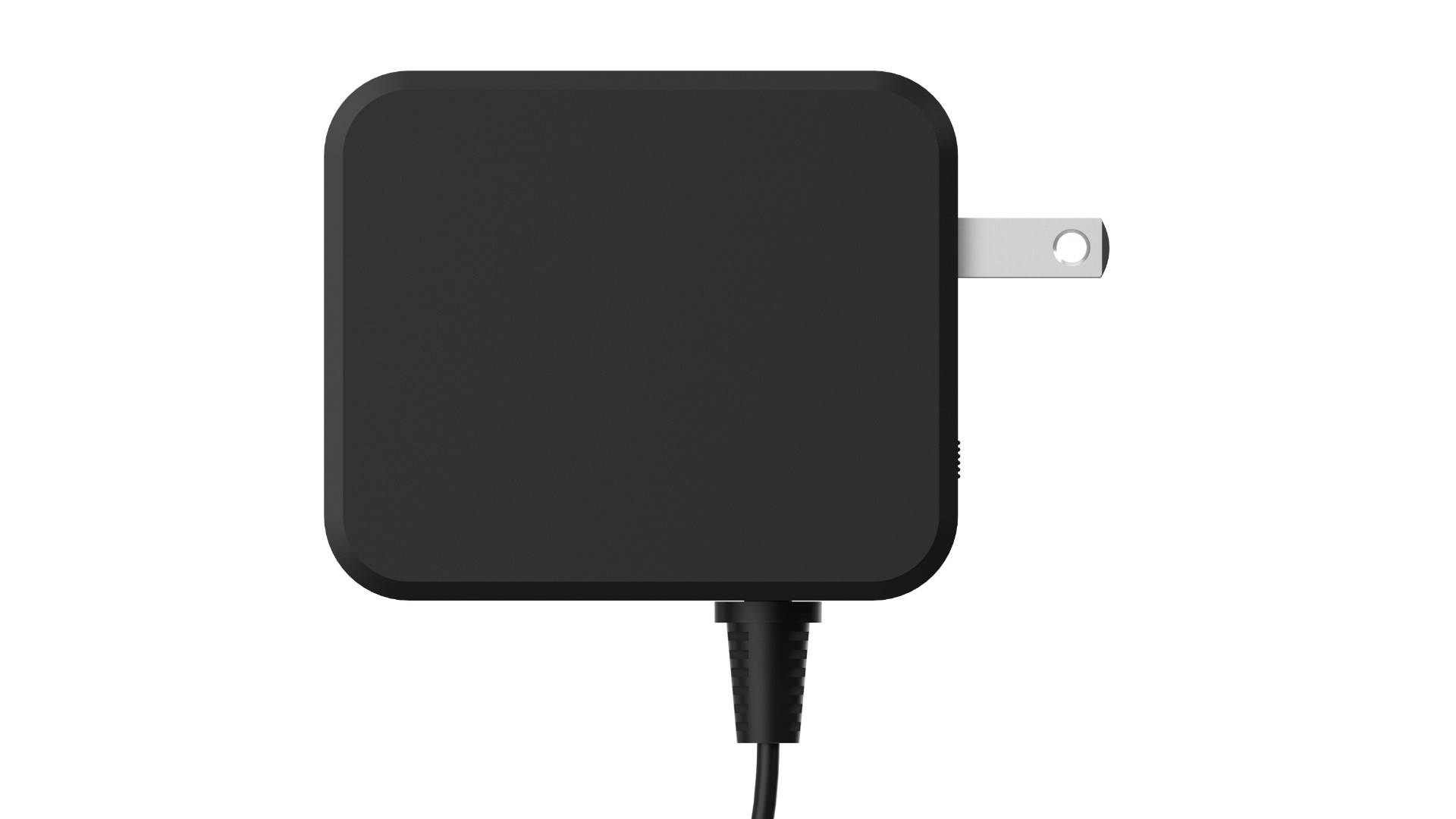

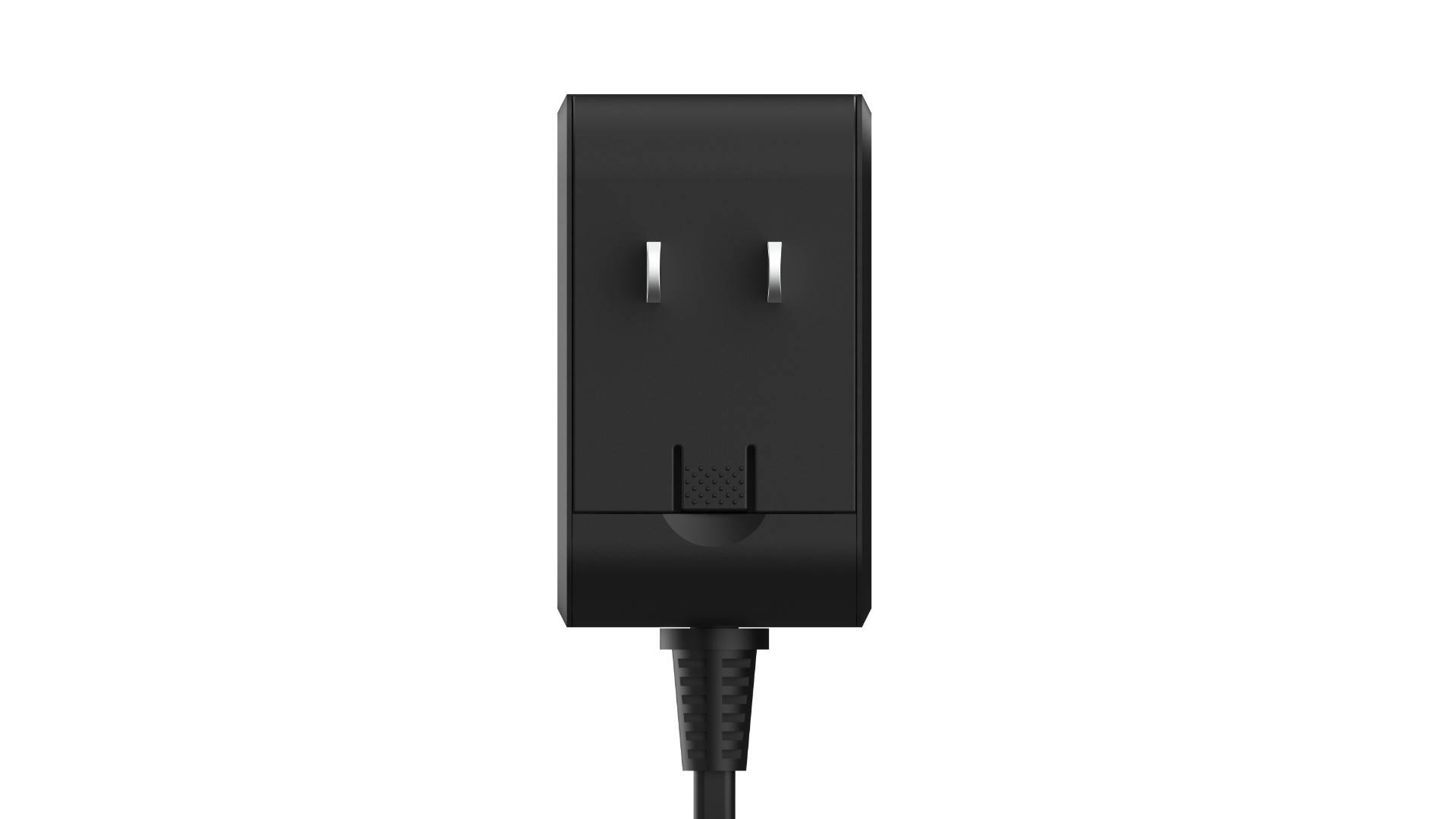

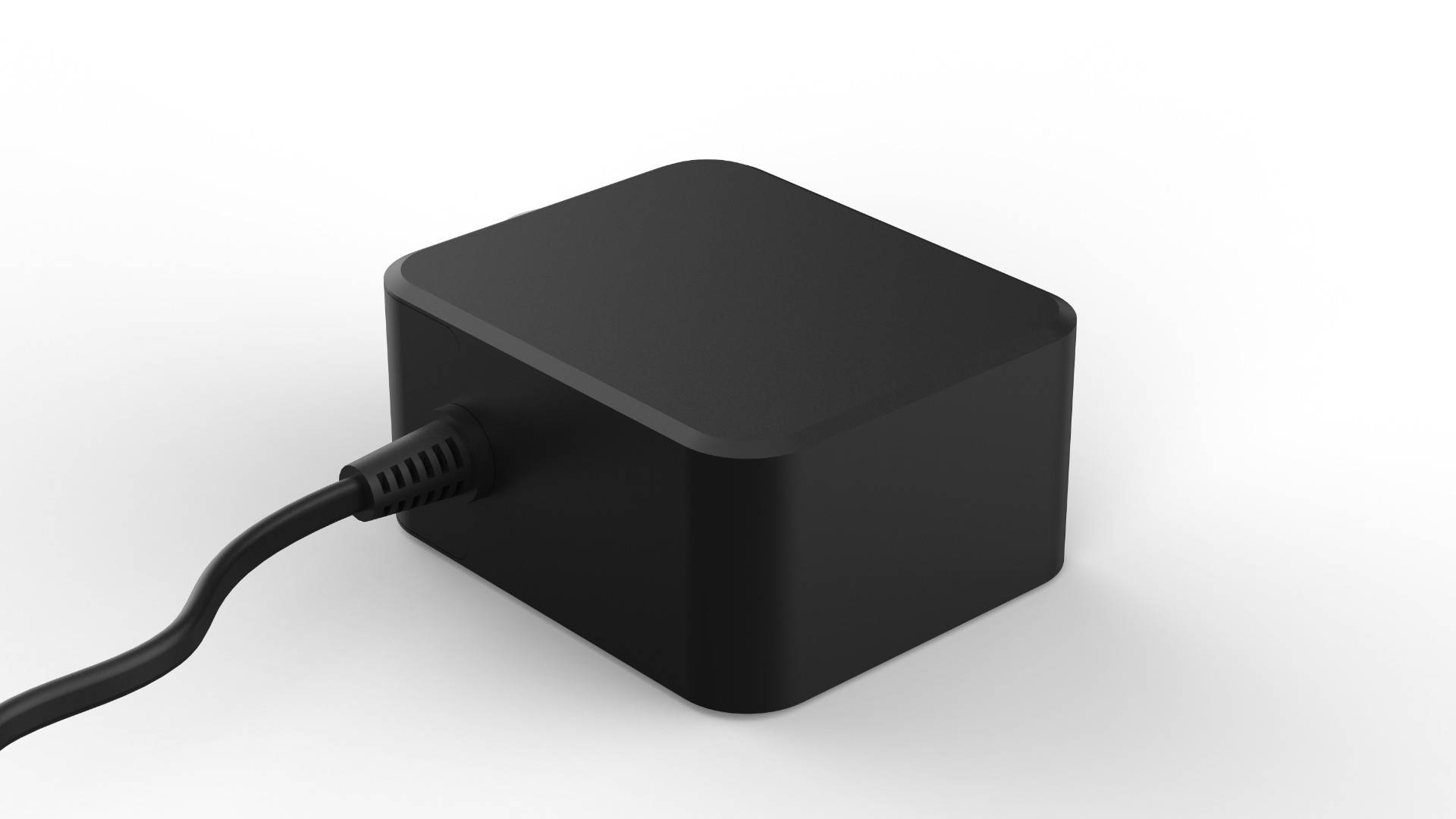

Adapter
-
-
Product Model
K65B1
-
Input Specifications
Normal Voltage Input
100V-240V
-
Frequency Range
50Hz/60Hz±5%
-
Max Input AC Current
1.5A
-
Output Specifications
USB Interface
/
-
Type C1,Type C2
/
-
Power Allocation
USB+Type C1
/
-
USB+Type C2
/
-
Type C1+Type C2
/
-
USB+Type C1+Type C2
/
-
Electrical Specifications
Maximal Output Power
65W
-
Standby Power Loss
≤0.21W(240V Input)
-
Interface
DC
-
Plug Type
Chinese, European, American
-
Output Voltage
19V
-
Rated Output Current
3.42A
-
Average Efficiency
≥88%
-
Output Voltage/Rated Output Current
/
-
Protection Function
Output Over Current Protection
Over current point protection is at rated input, the output current is 110%-170% of rated current
-
Output Short Circuit Protection
The system shall hiccup when over current, and shall be self-recovery when the fault condition is removed
-
Safety
Power Safety
IEC62368
-
Power EMI
Cispr 32
-
ESD
IEC61000-4-2
-
EFT
IEC61000-4-4
-
SURG
IEC61000-4-5
-
Structure Specifications
Plastic Shell Size
56*33*67mm
-
Length of External Line
1.8m
-
Standard Color
Black
