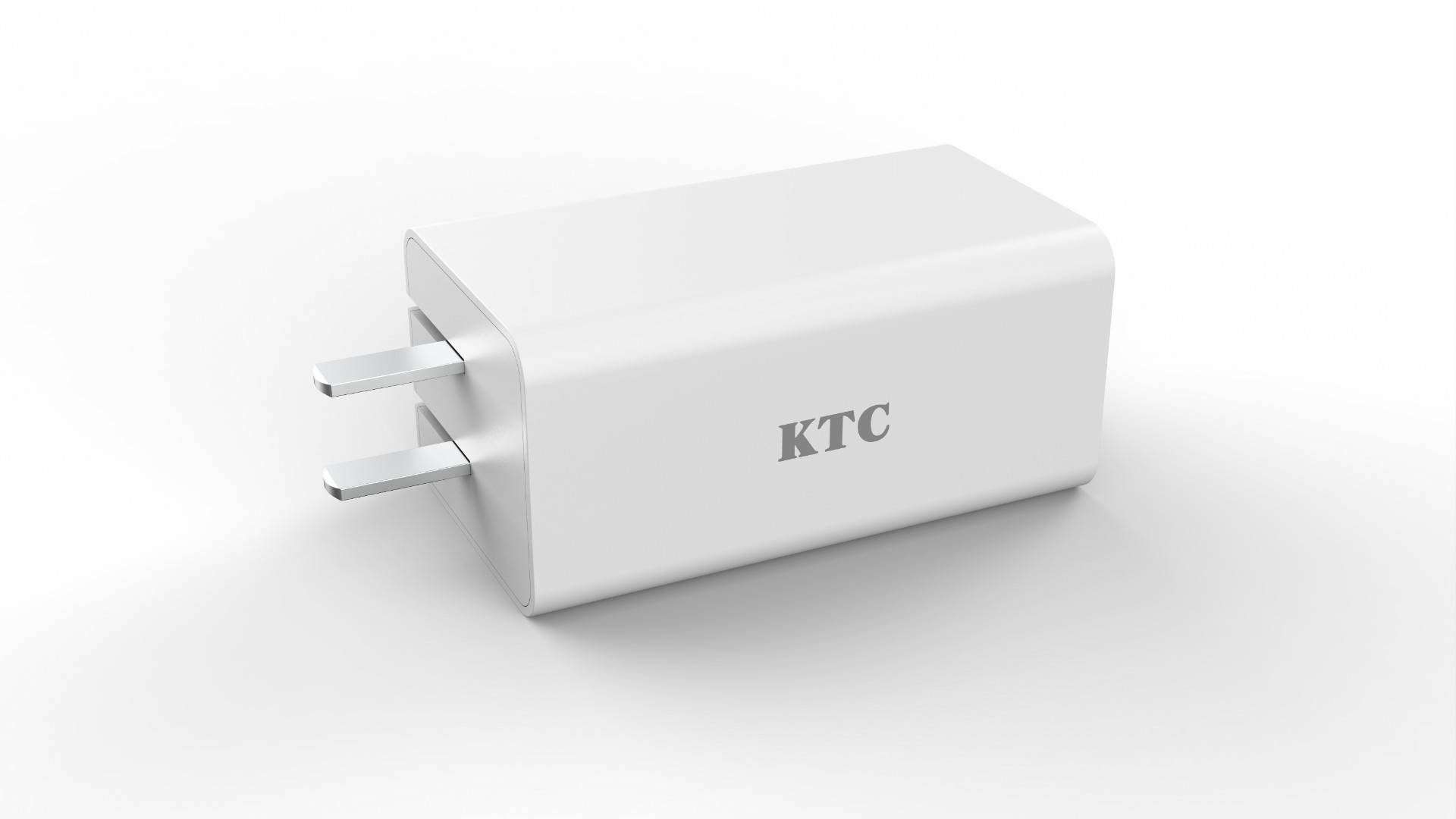

Adapter
-
-
Product Model
K65A1
-
Input Specifications
Normal Voltage Input
100V-240V
-
Frequency Range
50Hz/60Hz±5%
-
Max Input AC Current
1.5A
-

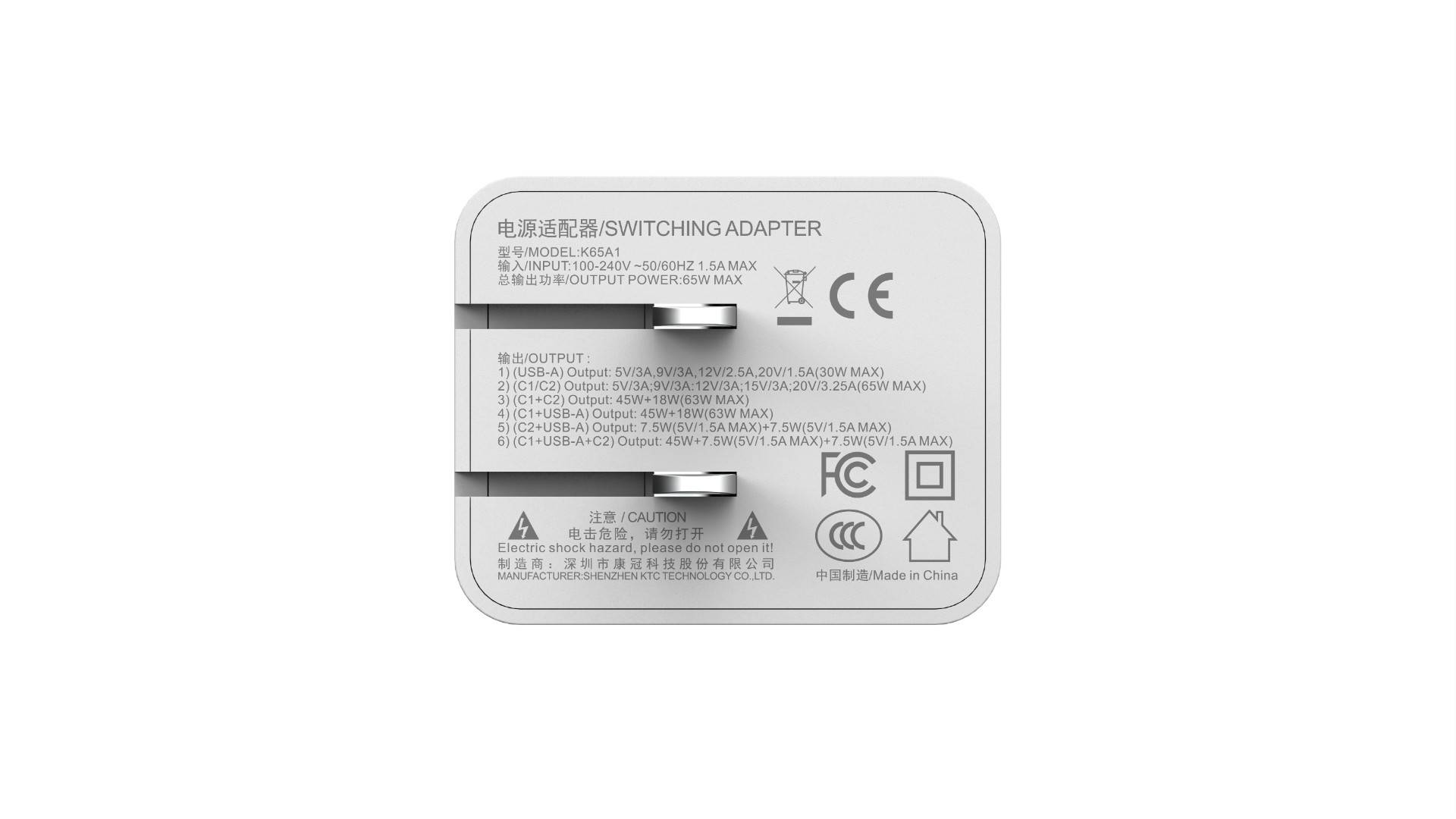

Output Specifications
USB Interface
5V/3A
9V/3A
12V/2.5A
20V/1.5A
-
Type C1,Type C2
5V/3A
9V/3A
12V/3A
15V/3A
20V/3.25A
-
Power Allocation
USB+Type C1
18W+45W
-
USB+Type C2
7.5W+7.5W
-
Type C1+Type C2
45W+18W
-
USB+Type C1+Type C2
7.5W+45W+7.5W
-
Electrical Specifications
Maximal Output Power
65W
-
Standby Power Loss
≤0.21W(240V Input)
-

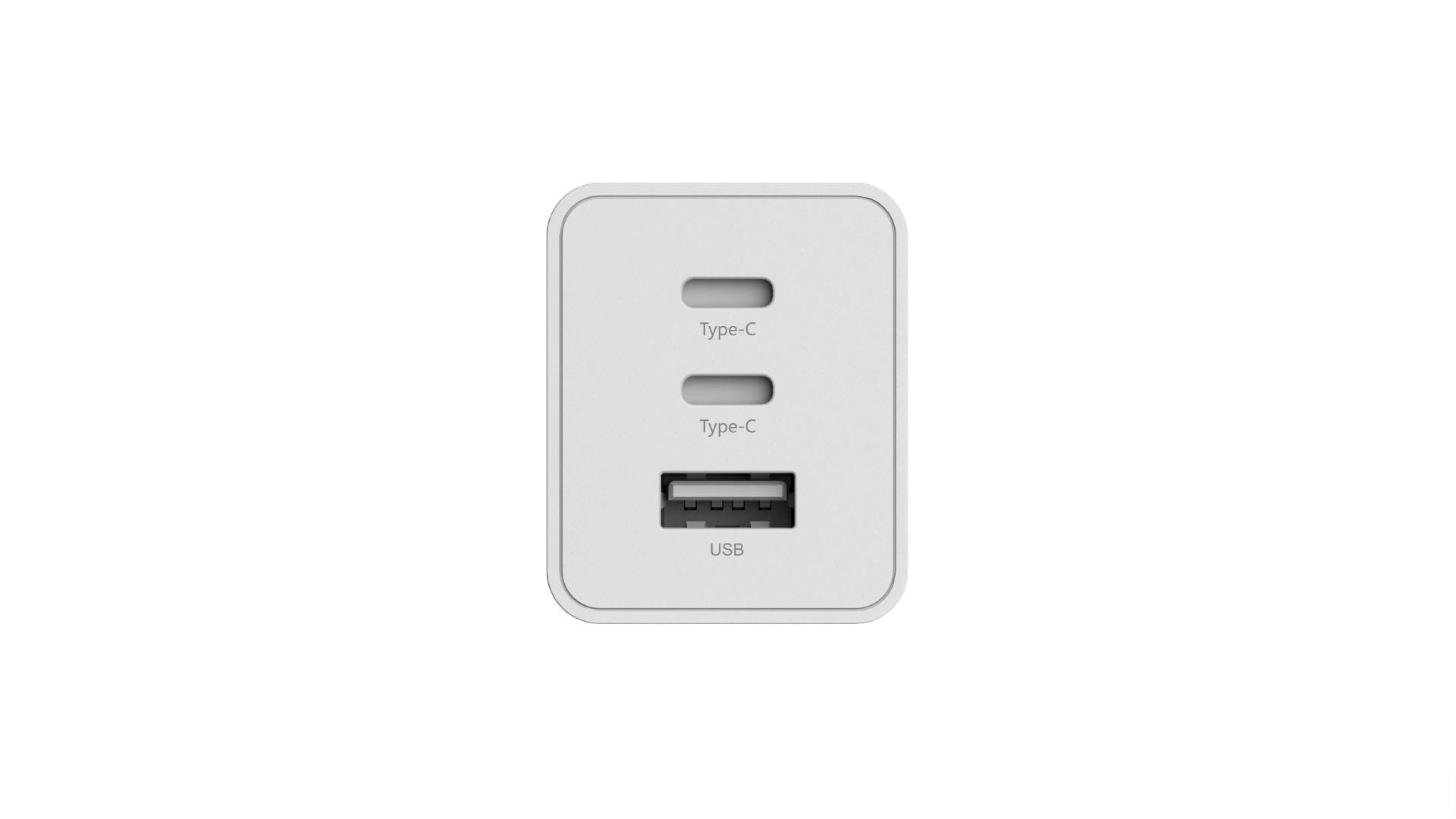

Interface

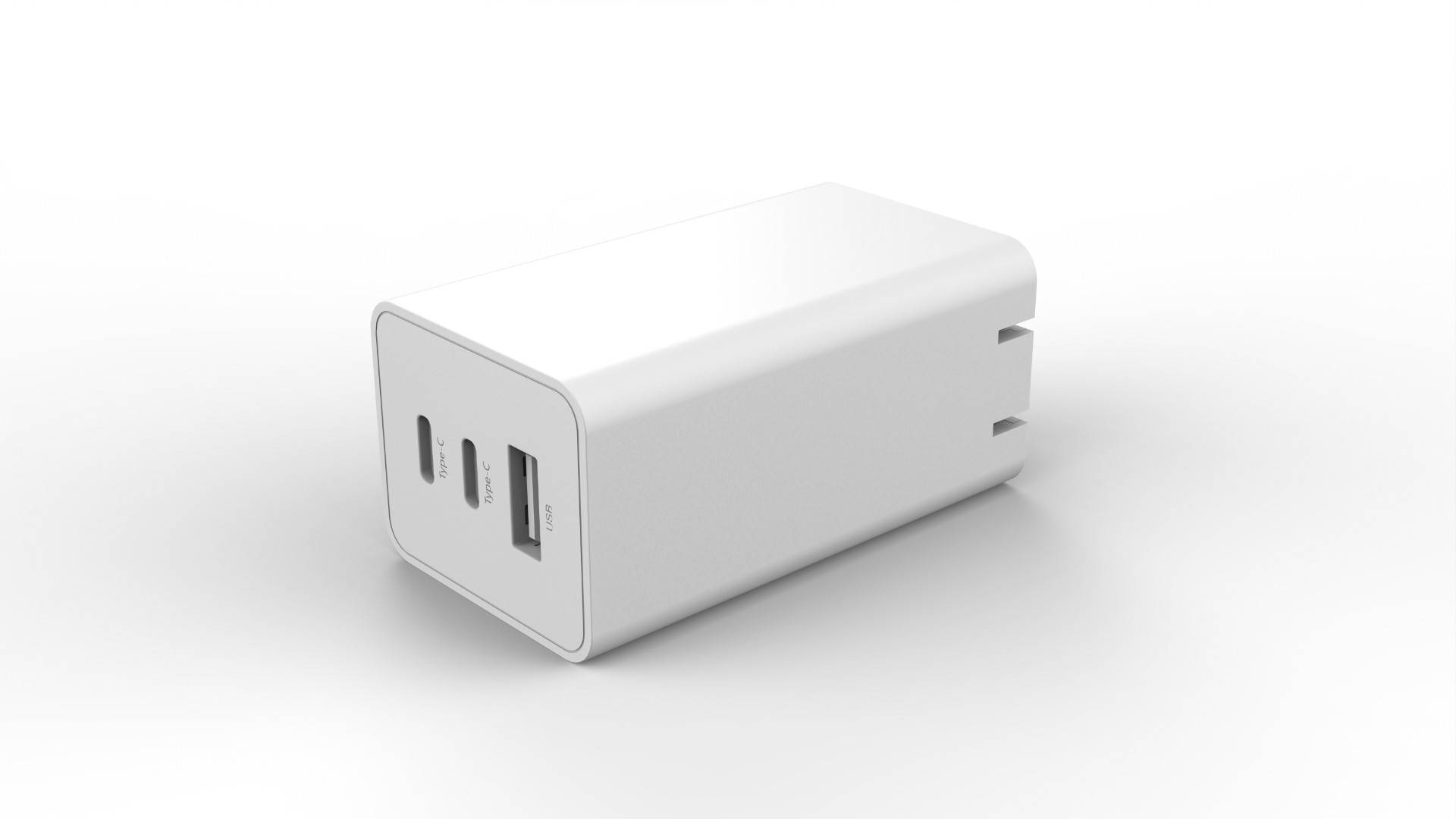

USB*1,Type C*2
-
Plug Type
Chinese
-
Output Voltage
/
-
Rated Output Current
/
-
Average Efficiency
/
-
Output Voltage/Rated Output Current
/
-
Protection Function
Output Over Current Protection
Over current point protection is at rated input, the output current is 110%-170% of rated current
-
Output Short Circuit Protection
The system shall hiccup when over current, and shall be self-recovery when the fault condition is removed
-
Safety
Power Safety
IEC62368
-
Power EMI
Cispr 32
-
ESD
IEC61000-4-2
-
EFT
IEC61000-4-4
-
SURG
IEC61000-4-5
-
Structure Specifications
Plastic Shell Size
40*32.6*72mm
-
Length of External Line
1.8m
-
Standard Color
White，Black
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
