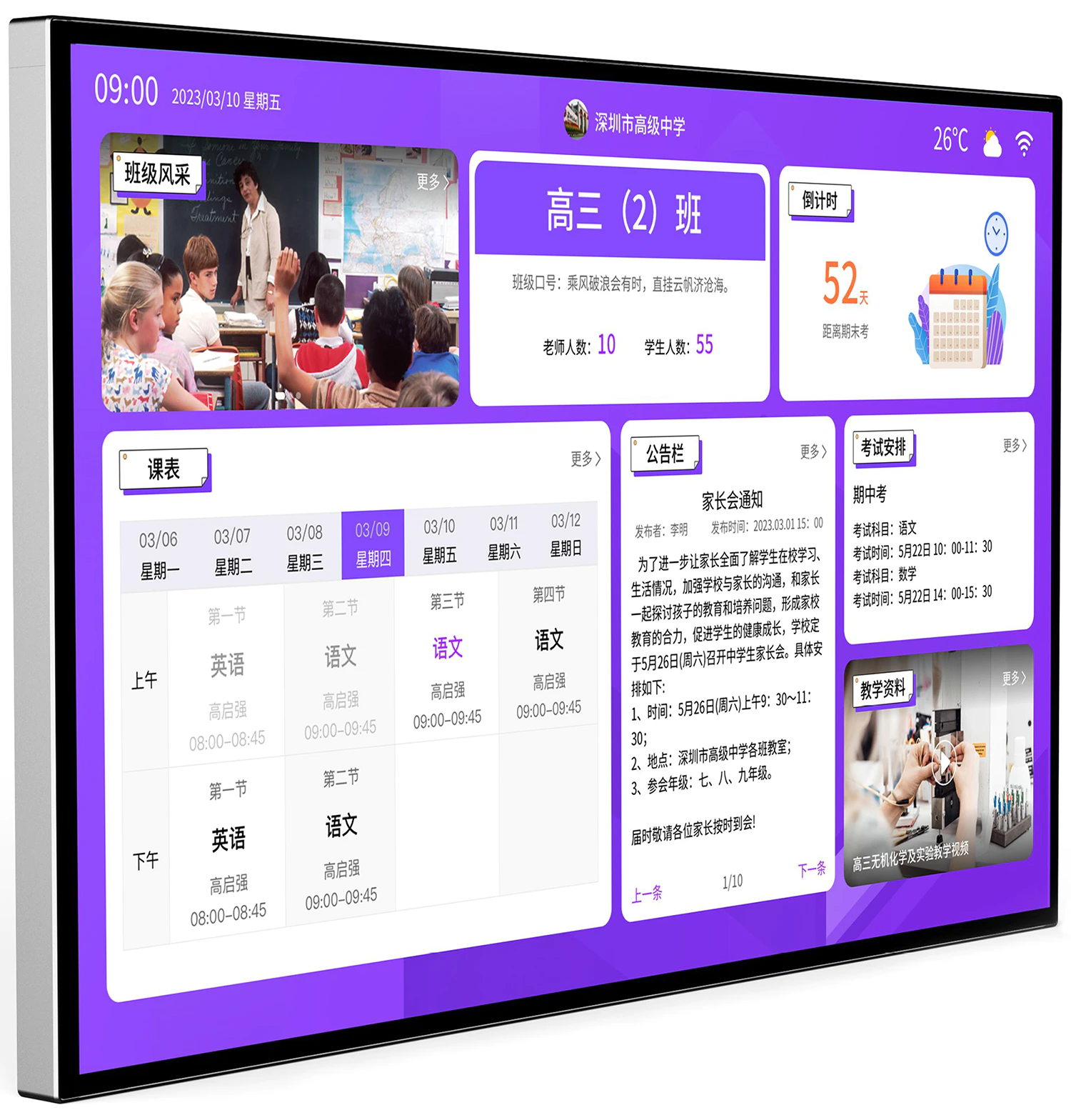

Electronic Class Signage
-
-
Model
27T11FBT
-
Display parameters
LCD Size
27inch
-
Backlight category
ELED
-
Resolution
1920*1080
-
Complete machine brightness
270cd/m²(Typ)
-
Contrast
4000:1(Typ)
-
Response time
12ms
-
Refresh rate
60Hz
-
Color Gamut
NTSC 72%(Typ)
-
Color
1.07G colors
-
Electrical Specifications
Main chip
RK3399
-
CPU
ARM Cortex-A72*2+ARM Cortex-A53*4
-
GPU
Mali-T860*4
-
RAM+ROM
4GB+32GB
-
Software version
Android 12
-
Motherboard interface
Type-C-IN*1/Type-C-OUT*1/HDMI-IN*1/LAN*1/USB3.0*2
-
Touch
Supports ten-point capacitive touch
-
Power supply
65W，20V/3.25A
-
Keys
Single Key (Standby, Power Off, Restart, Back)
-
Maximum sound power
2x3W
-
Structural parameters
Bare machine dimensions
630.488*42.72*368.916mm(No stand)
630.488*52.66*368.916mm(With wall bracket)
-
Packing Dimension
702*93*436mm
-
Shell color
silver gray
-
N.W.
5.27KG
-
G.W.
6.7KG
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
