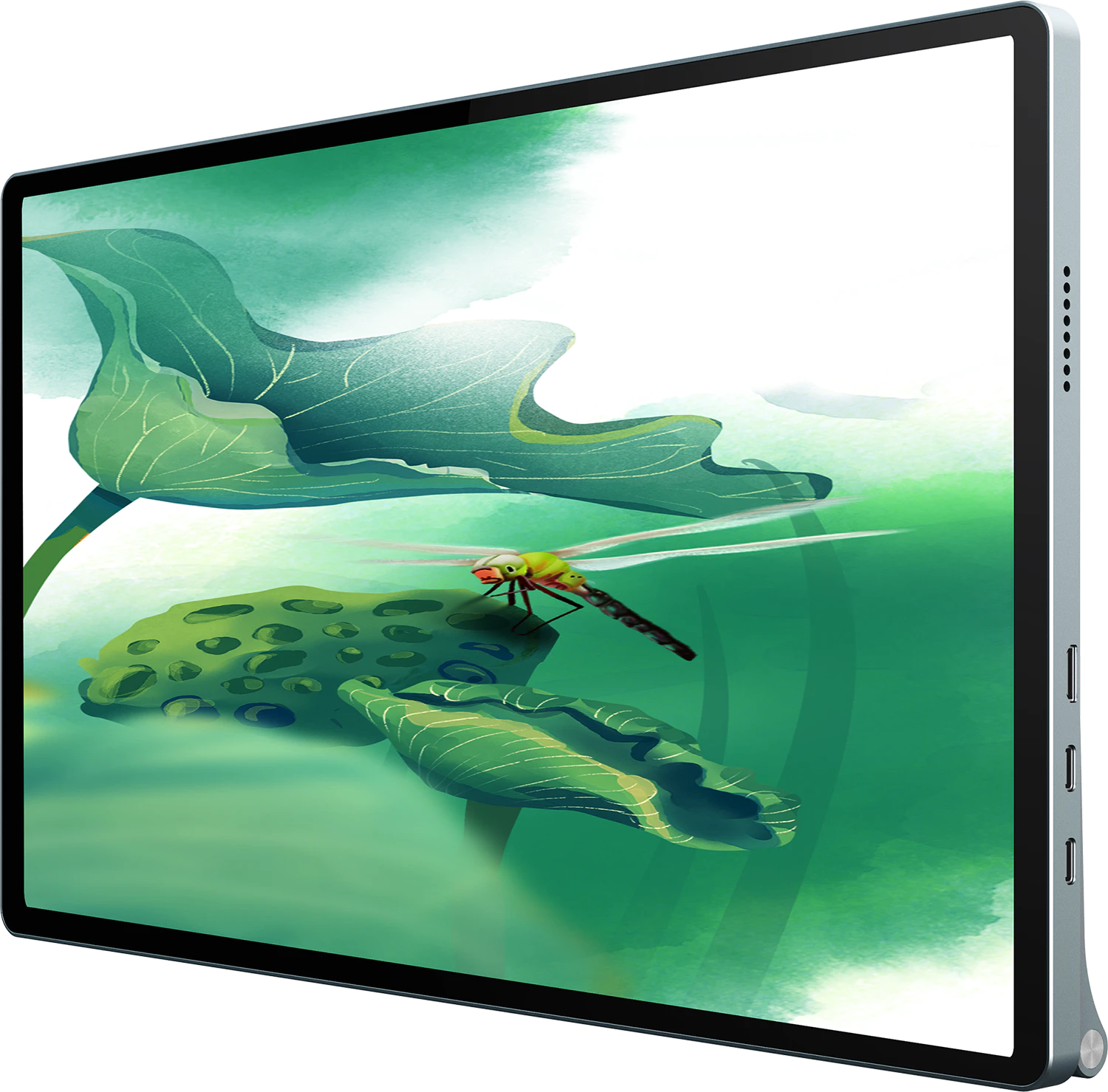

Portable screen
-
-
Model
156G21YDT
-
Structure specification
Structure composition
Full lamination: OC+TP+tempered glass
-
Lamination process
Full lamination
-
Whole machine size
369mm*218.4mm*23.3mm
-
Surface treatment
AG+AF
-
Optical Specification
A-A
15.6 inch
-
Resolution
1920*1080
-
Aspect ratio
16:9
-
Backlight category
ELED
-
Resfresh rate
60Hz
-
Response time
30ms
-
Module Color Gamut
72%(Typ)(NTSC)
-
Color
16.7M
-
Brightness uniformity(9P)
75%(1/9)↑
-
Machine brightness
300cd/m²
-
Tempered Glass Light Transmission
Over 88%
-
Electrical Specifications
TP
GFF
-
Overall power
≤30W
-
Touch Panel
10-point multi-touch supported
-
Speakers
4Ω2W*2
-
Keypad
On/off button
-
External port
Type-C*2、HDMI(mini)*1
-
Power source
30W adapter
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
