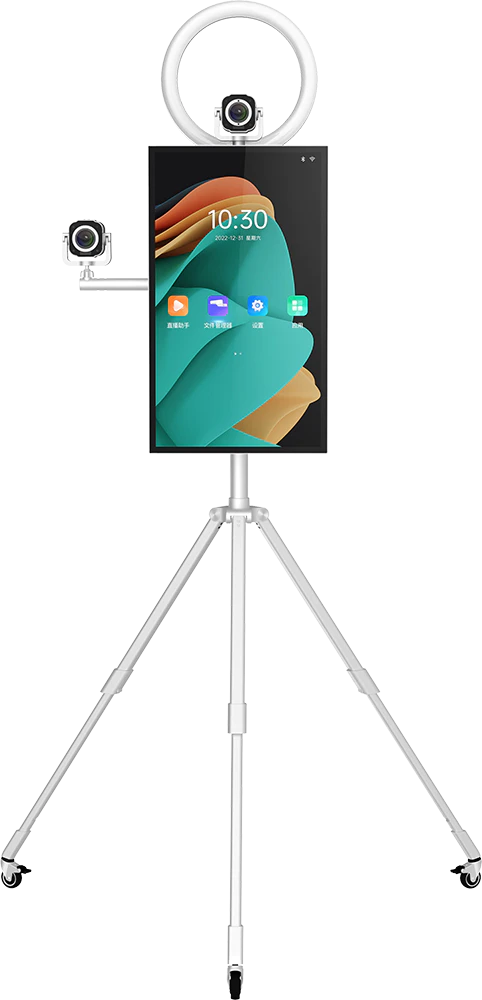

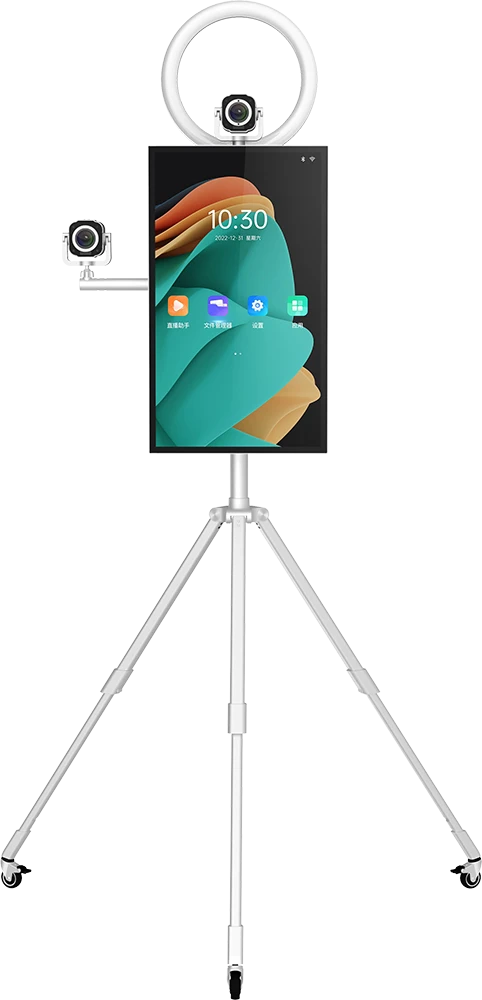

Live Broadcaster
-
-
Model
27Z21UDT
-
Structure specification
Structure composition
Full lamination: OC+TP+tempered glass
-
Lamination process
Full lamination
-
Surface treatment
AG+AF
-
Optical Specification
Resolution
3840*2160
-
Aspect ratio
16:9
-
Backlight category
ELED
-
Resfresh rate
60Hz
-
Response time
14ms(Typ,GTG)
-
Contrast ratio
1000:1
-
Module Color Gamut
NTSC1931 72%(Typ)/68%(Min)
-
Color
1.07 Billion colors
-
Brightness uniformity(9P)
min.70%/Typ.75%(1/9)
-
Machine brightness
400cd/m²(Typ)
-
Tempered Glass Light Transmission
Over 88%
-
Electrical Specifications
CPU
Cortex-A76*4+ Cortex-A55*4
-
RAM+ROM
8G(optional 4G)+64G(max 128G)
-
Operation system
Android 12
-
TP
GFF
-
Headphone cable
External wireless microphone
-
Overall power
≤65w
-
Touch Panel
10-point multi-touch supported
-
Camera
8 million 4K peripheral camera
-
WIFI/Bluetooth
WiFi6;BT5.2
-
Speakers
4Ω3W*2
-
Microphone Array Board
Linear 4-mic
-
Keypad
Single switch key
-
External port
USB2.0×2/USB3.0×1/TYPE-C IN×1/TYPE-C OUT×1/HDMI IN×1/LAN×1
-
Power source
65W adapter
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
