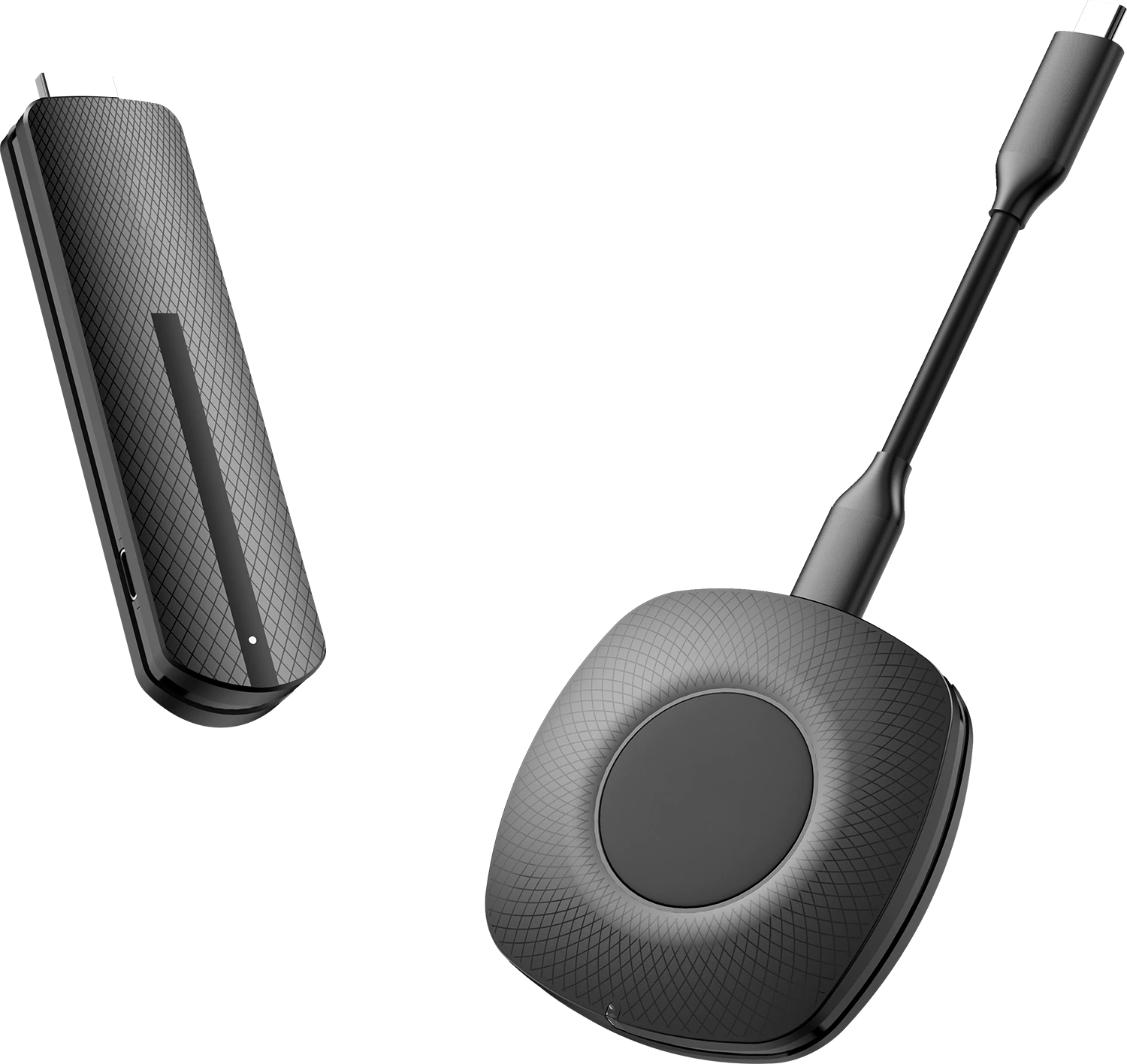

Mirror Screen Device
-
-
Model
HG-1
-
Product specifications (Transmitter)
Main chip
Quad-Core A7
-
CPU
Cortex A7(1.5GHz)*4
-
Wireless transmission protocol
802.11a/b/g/n/ac
-
Working frequency
5GHz+2.4GHz
-
Support system
Windows7/8/10, Android5.0, iOS9.0 +, Mac OS X10.8 and above
-
Drive
Driver-free
-
Delay
The average delay is 180ms
-
Operation method
One-click screencasting
-
Recommended working distance
5m
-
Sound
Audio and video synchronization
-
Interface
Type-C-IN
-
Blue light flashing
1. No operation after power on: connect to the last saved WIFI and connect to the receiver;
2. Long press to trigger automatic pairing: it means automatic pairing is in progress;
-
Highlight blue light
1. No operation after power on: it means the screen projector is started;
2. The blue light flashes and then stays on: it indicates that the receiver is successfully connected;
-
Blue light low
Mirroring
-
Product Specifications (Receiver)
Main chip
RK3229
-
CPU
Cortex A7(1.5GHz)*4
-
GPU
Mail-400*2
-
Wireless transmission protocol
802.11a/b/g/n/ac
-
Working frequency
5GHz+2.4GHz
-
Drive
Driver-free
-
Delay
The average delay is 180ms
-
Operation method
One-click screencasting
-
Recommended working distance
5m
-
Sound
Audio and video synchronization
-
Interface
HDMI-OUT/Type-C-IN
-
Green light is always on
Indicates that the projector is started
-
Green light is not on
Indicates that the projector is not started
-
Structural parameters
Bare metal dimensions
Transmitter：169*66.3*16mm
Receiver：116.5*30*14.9mm
-
Package size
211.5*101.5*48.5mm
-
Shell material
PC+ABS
-
Shell color
Black
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
