Product Specifications
Mobile smart screen
  •
  •   Model 32A12FWT
  •   Screen size 32"
  • Electric Parameters CPU Cortex-A72*2+Cortex-A53*4
  •   RAM 4GB
  •   ROM 16GB
  •   Bluetooth 5.0
  •   WIFI 2.4G/5G dual frequency
  •   Battery Battery Duration: above 3 hours
  •   Speakers 2*8W
  • Software Software version Android 10
  • Wireless projection screen Projection protocol Support DLNA, mirracast and airplay protocols
  • External port HDMI2.0 1
  •   USB-C 1
  •   USB2.0 1
  •   USB3.0 1
  • Display parameters Backlight category ELED
  •   Resolution FHD(1920*1080)
  •   Complete machine brightness 250cd/m²(Max)
  •   Screen ratio 16:9
  •   Contrast 1000(Typ)
  •   Color Gamut(NTSC) 72%
  •   Visible area 698.4mm*392.85mm
  •   Color 16.7M
  •   Response time 8ms(Typ)
  •   Number of frames 60Hz
  • Touch Support multi touch 10-touch supported
  • Prop stand parameters Angle of pitch ±20°
  •   Lift 200mm
  •   Rotate ± 90 ° vertical rotation
    ± 45 ° left and right rotation
  • Dimensions parameters Bare machine dimensions(W*D*H) 734mm*429mm*426mm
    734mm*1331mm*426mm(With a metal stand)
  •   Packing size(W*D*H) 1400mm*245mm*575mm
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
Detail Pictures of Product

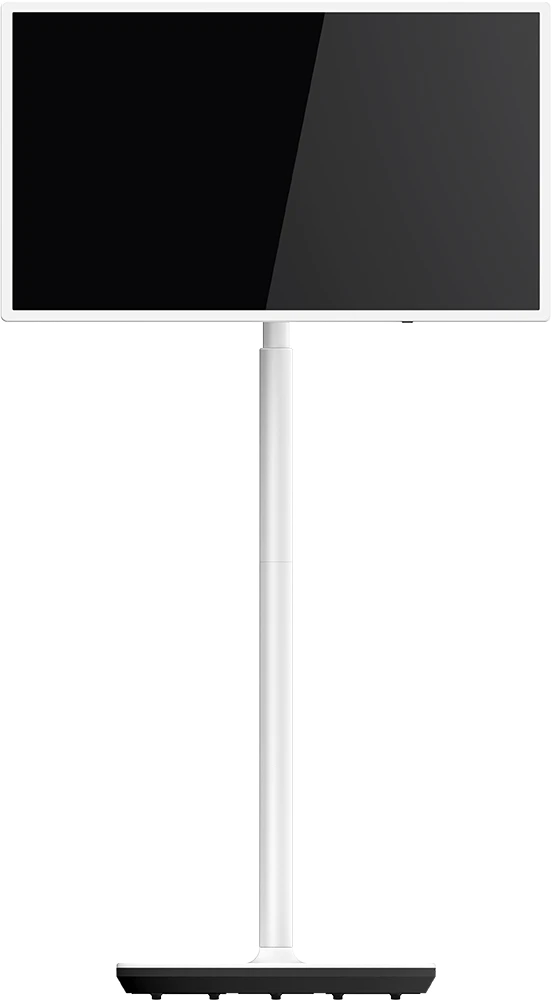

  • Front

  • Back

  • Side

  • Front
  • Back
  • Side
