Product Specifications

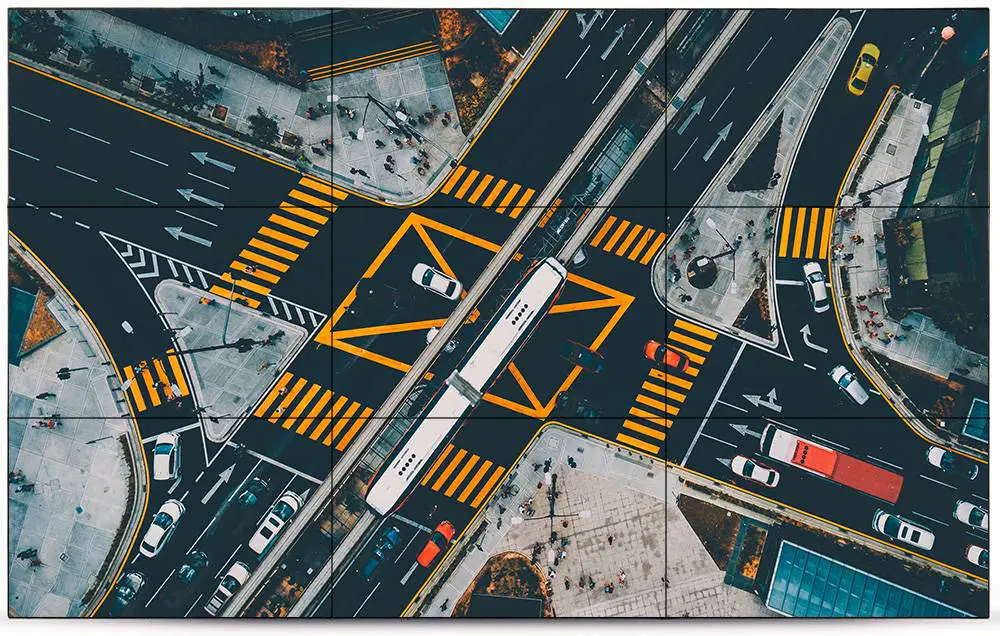

BOE Video Wall
  •
  •   Model 46D09-BL
  •   Panel size 46"
  • Display parameters Backlight category DLED
  •   Optimum resolution 1920*1080@60Hz
  •   Viewing angle H:178°/V:178°
  •   Brightness 500cd/m²
  •   Contrast ratio 1200:1
  •   Response time 8ms
  •   Color 16.7M
  •   Joint 0.88mm
  • Electrical Parameters Power TBD
  •   Standby Power
  •   Operating voltage AC 100V~240V, 50/60Hz
  • Structure Parameters Product dimension(W*D*H) 1019.0mm*119.6mm*573.6mm
  •   Packing dimension(W*D*H) 1145mm*365mm*698mm(Single screen)
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
Detail Pictures of Product
  • Front

  • Back

  • Side

  • Front
  • Back
  • Side
