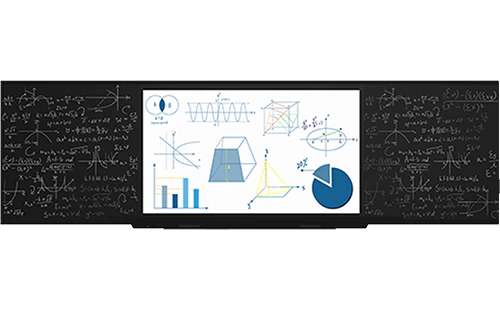

Smart Blackboard
-
-
Model
86S11D
-
Display parameters
Backlight category
DLED
-
Optimum resolution
3840*2160@60Hz
-
Viewing angle
H:178°/V:178°
-
Brightness
400cd/m²
-
Contrast ratio
1200:1
-
Response time
8ms
-
Color
1.07B
-
Bonding Technology
Optical Bonding
-
Electrical Parameters
Power Consumption
≤380W
-
Standby Power Consumption
＜0.5W
-
Operating voltage
AC 100V~240V, 50/60Hz
-
Touch Parameters
Sensing Type
Multi-point PCAP Touch
-
Structure Parameters
Product Dimension(W*D*H)
4200mm*1243.3mm*77.3mm(Without wall racks)
-
Packing Dimension(W*D*H)
2140mm*280mm*1340mm(Home screen)
1405mm*280mm*1340mm(Sub screen)
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
