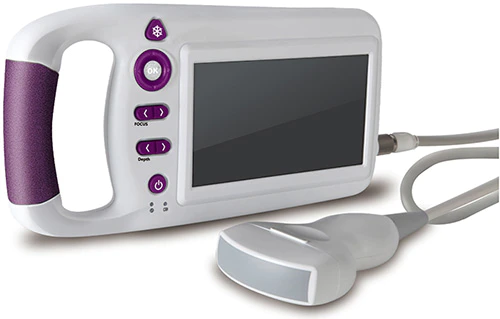

Hand-Carried Ultrasound
-
-
Product name
Hand-Carried Ultrasound
-
Technical parameter
The following parameters are described as the main version of the animal version
-
Application scope
pig, dog, cat, cow, sheep, horse
-
Scanning Method
Intracavity probe
center frequency is 6.5MHz, frequency range is 5.0-8.5MHz, 4 frequency onversions (3/3.5/4.0/5.0MHz) (diagnosis of animal gestation, there are already probes)
-
Convex array probe
center frequency is 3.5MHz, frequency range is 3.0-5.0MHz, 4 frequency conversions (3/3.5/4.0/5.0MHz) (diagnosis of abdomen, there are already probes)
-
Line array probe
center frequency is 7.5MHz, frequency range is 5.0-10.0MHz, 4 frequency conversions (5.5/7.5/9.0/10.0MHz)
-
High-frequency convex probe
center frequency is 6.5MHz, frequency range is 5.0-8.5MHz, 4 frequency conversions (5/6.5/7.0/8.5MHz)
-
Low-frequency convex probe
center frequency is 6.5MHz, frequency range is 5.0-8.5MHz, 4 frequency conversions (3/3.5/4.0/5.0MHz)
-
Large animal rectal probe
center frequency is 7.5MHz, frequency range is 5.0-10.0MHz, 4 frequency conversions (5.5/7.5/9.0/10.0MHz)
-
PS
Probe has automatic freeze function (automatic freeze time can be preset.)
-
power supply
power input
Voltage: 100-240V
Frequency: 50/60Hz
Power: 42VA
-
power working time
Network power: ≥ 8h
frequency internal voltage ≥ 2h
-
In-output devices
USB interface
TV-OUT (Composite Video Interface)
Power line interface
-
Human-computer interaction system
Number of control panel cases 5
Touch screen
Monitor size:7 inch TFT LCD
-
Graphic information management
Movie return visit
Supports B, M mode movie playback
Support manual and automatic playback
Movie playback frames: 512 frames
-
Image storage
Static Image: JPG
Storage capacity: 1200 frames
Support: USB and other mobile storage devices
Revisit speed: 4 levels adjustable (1, 1/2, 4/1, 8/1)
-
B, M mode scan parameters
Gain
0-100dB, Step: 3dB
-
Near-field gain
0-100dB, step length: 3dB
-
Far-field gain
0-100dB, step length: 3dB
-
Dynamic Range
30-50dB, Stepping: 5dB
-
Gray-scale diagram
16 kinds of adjustable (A-P)
-
Frequency
divided into four frequency adjustable
-
Depth
The maximum depth can reach 32cm
-
Number of focal points
4 adjustable (1,2,3,4)
-
Depth of focus
The maximum depth of up to 12cm
-
Line density:
H, L two files
-
Smooth
4-speed adjustable (1,2,3,4)
-
Frame related
8-speed adjustable (0-7)
-
Edge Enhancement
4-speed adjustable (0,1,2,3)
-
Up and down
The image flips upside down
-
B/M layout
up/down
-
B/M layout ratio
50/50
-
Scan depth
large convex probe, 2.5-31cm
-
visible
Full field, low density, depth 18.5cm, frame rate 60.1 frames
-
Conventional measurement and calculation
B mode conventional measurement
Distance
Perimeter/area: ellipse, tracing
Angle
Volume: three-distance method, one-distance method, ellipse + ellipse
-
M mode conventional measurement
Slope
Heart rate
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
