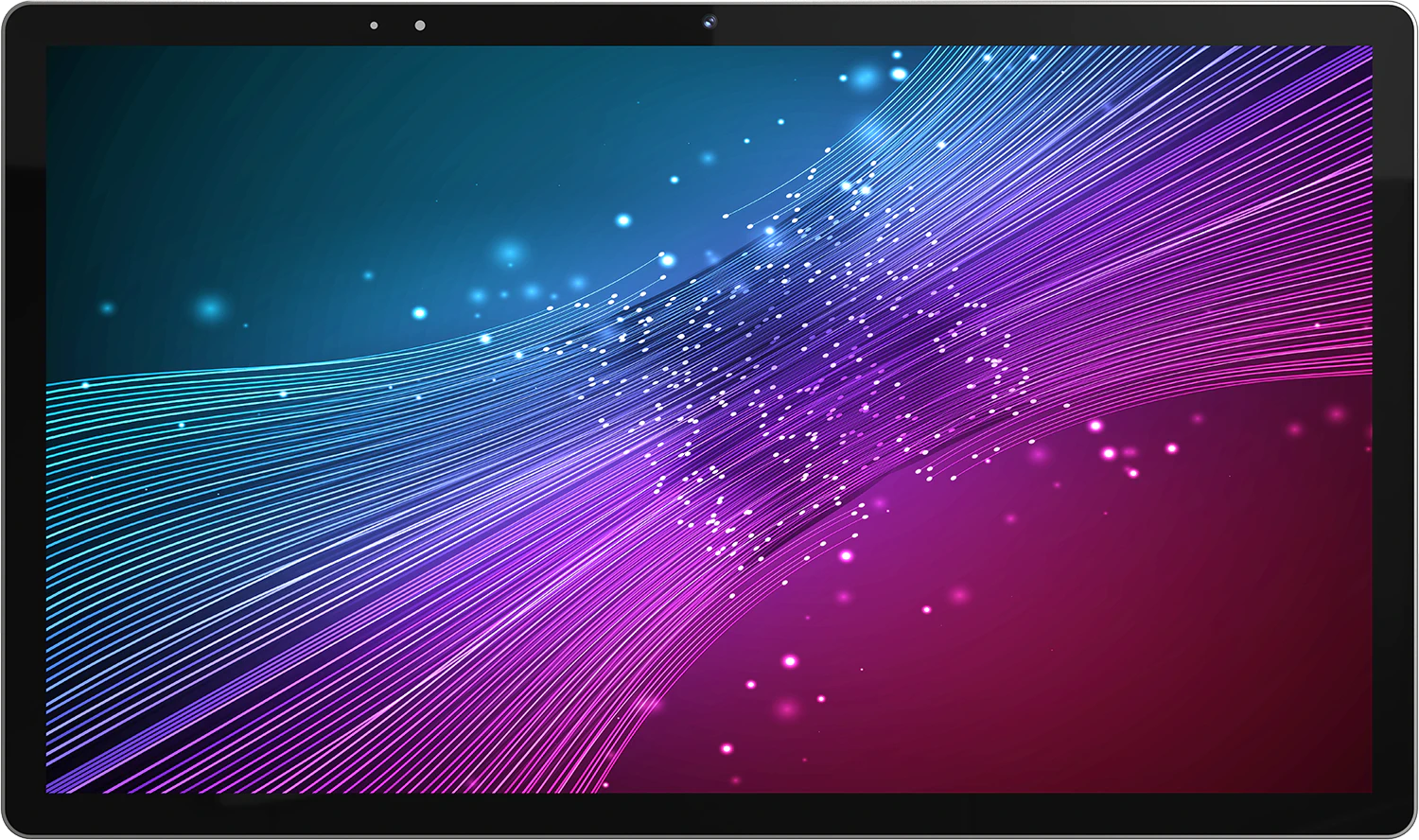

PAD
-
-
Model
156T21YDT
-
Structure specification
Structure composition
Full lamination: OC+TP+tempered glass
-
Lamination process
Full lamination
-
Whole machine size
368.96mm*218.39mm*10.5mm
-
Surface treatment
AG+AF
-
Optical Specification
A-A
15.6 inch
-
Resolution
1920*1080
-
Aspect ratio
16:9
-
Backlight category
ELED
-
Resfresh rate
60Hz
-
Response time
30ms
-
Module Color Gamut
72%(Typ)(NTSC)
-
Color
16.7M
-
Brightness uniformity(9P)
75%(1/9)↑
-
Machine brightness
225cd/m²
-
Tempered Glass Light Transmission
Over 88%
-
Contrast Ratio
700:1
-
Electrical Specifications
TP
GFF
-
Overall power
≤30W
-
Touch Panel
10-point multi-touch supported
-
Speakers
8Ω 1W*4
-
Key
On/off button
-
Mainboard Interface
Type-C*1
-
Power source
30W adapter
-
Chipset
-
CPU
MT8183
-
RAM+ROM
6GB+128GB
-
System Version
Android 13
-
Microphone
2*MIC
-
WIFI
WiFi 5.0
-
Bluetooth
5.0
-
Batteries
4600mAh
-
Power Supply
Type-C,≤30W
-
Camera
8MP+13MP
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
